How to Streaming to Facebook Live Via RTMPS?

1. Before making live broadcast, you will need to check the following.

• Play the stream address in the encoder with the VLC player and confirm that it can play normally.

• Make sure you have upgraded the newest firmware for RTMPS.

• Canon camera don't have audio output, you will need to input an external audio.

• Microphone is not an audio source.

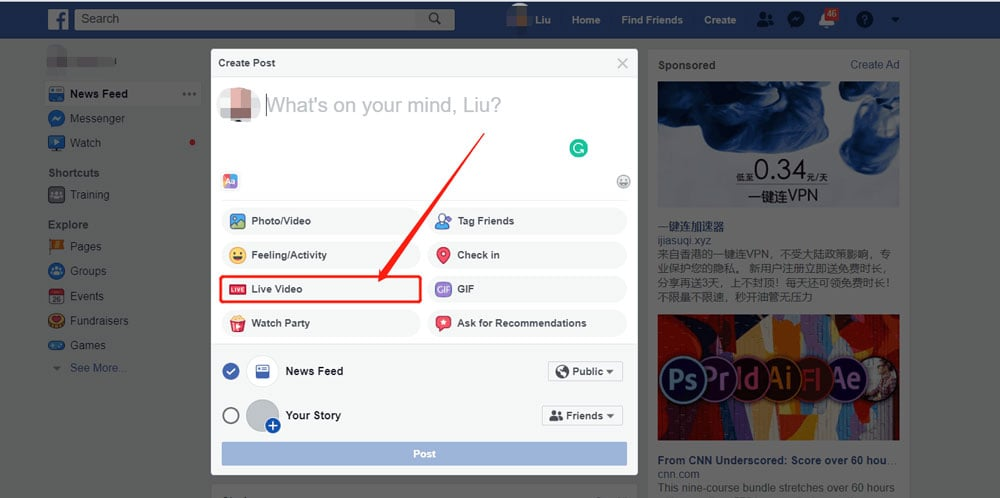

2. Login Your Facebook account and find "Live Video".

Step1: Choose "Go Live Now"

Step2: Choose "Use Stream Keys"

Step3: Copy "Server URL"

Step4: Copy "Stream Key"

3. Log in the control web of the video encoder hardware. Find the "Mainstream encoding settings" Page, Input RTMP/RTMPS set as bellow:

For Example:

My Facebook Server URL is "rtmps://live-api-s.facebook.com:443/rtmp/ "  check Step 3

My Facebook Stream Key is "866567570393098?s_bl=1&s_ps=1&s_sw=0&s_vt=api-s&a=AbxrXCmYBzEOQQon"  check Step 4

RTMPS of Encoder could be set as bellow:

RTMP server ip: live-api-s.facebook.com

RTMP server port: 443

RTMP app name: rtmp

RTMP stream name: 866567570393098?s_bl=1&s_ps=1&s_sw=0&s_vt=api-s&a=AbxrXCmYBzEOQQon

4. After set the RTMP, pls press the "SET UP" button on the bottom of the page. Then press "REBOOT" button in the system page.

Q: If you streaming failed on Facebook.

A: Pls check your DNS setting. The value of DNS0 and DNS1 is the DNS of the router.
