Brand: ORIVISION
Model: ZY-VGA-HA-KVM-TR
Transmitter Input: VGA*1, Audio*1
Transmitter Output: RS232 *1, LC*1, VGA*1
Recevier Input: RS232 *1, LC*1

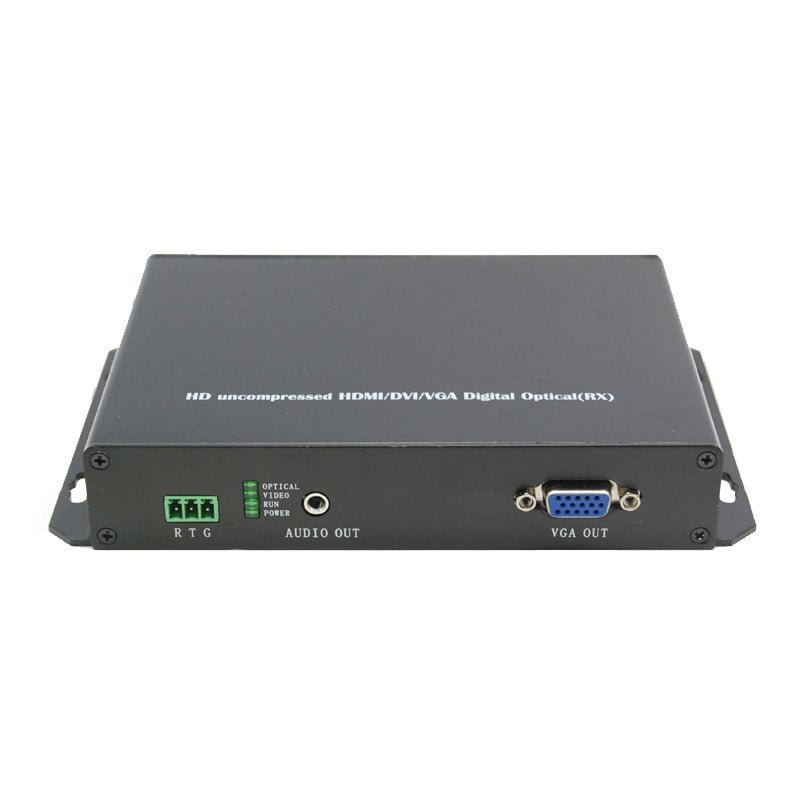

Recevier Output: VGA*2, Audio*1
Resolutuion: Max 1920*1200@60Hz
Transmission Distance: Default: Single model 1-core (10km);
Multimode Dual-Core Module (300m);
Spport 20KM, 60KM,80KM OEM
KVM: Keyboard and mouse
Power: 12V/DC 1A
Transmits VGA video signals up to 10km over one fiber optic cable

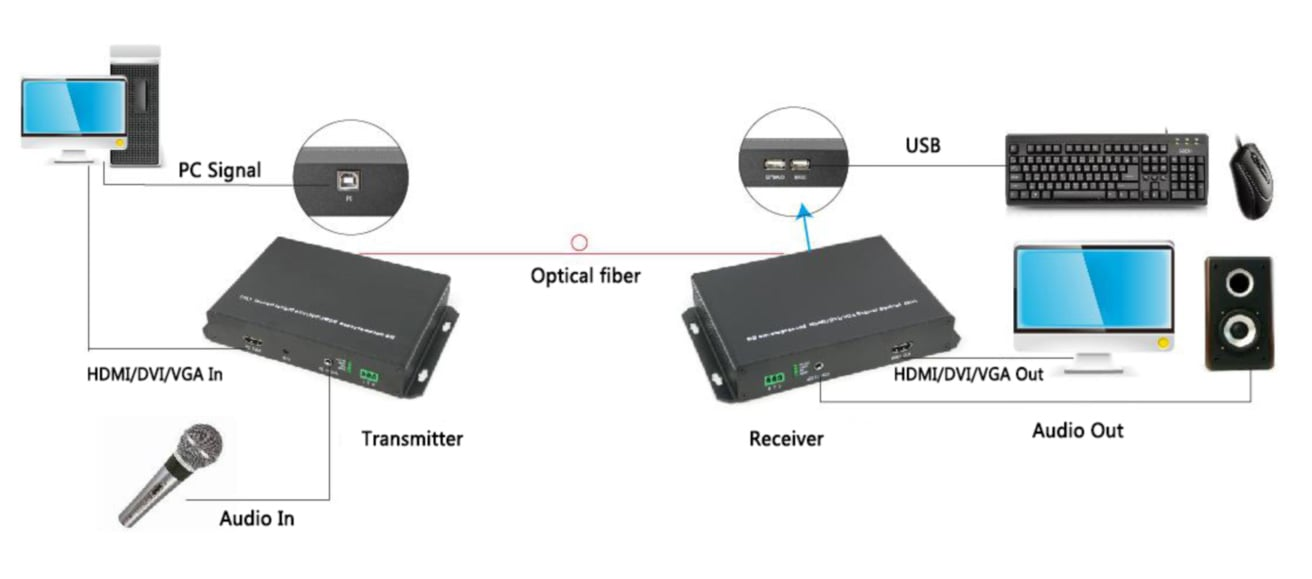

Simultaneous video/audio/keyboard/mouse signal transmission
Maximum video resolution up to 1920*1200@60Hz
Transmitter 1 channel vga loopout
Support RS232 signal and external audio transmission

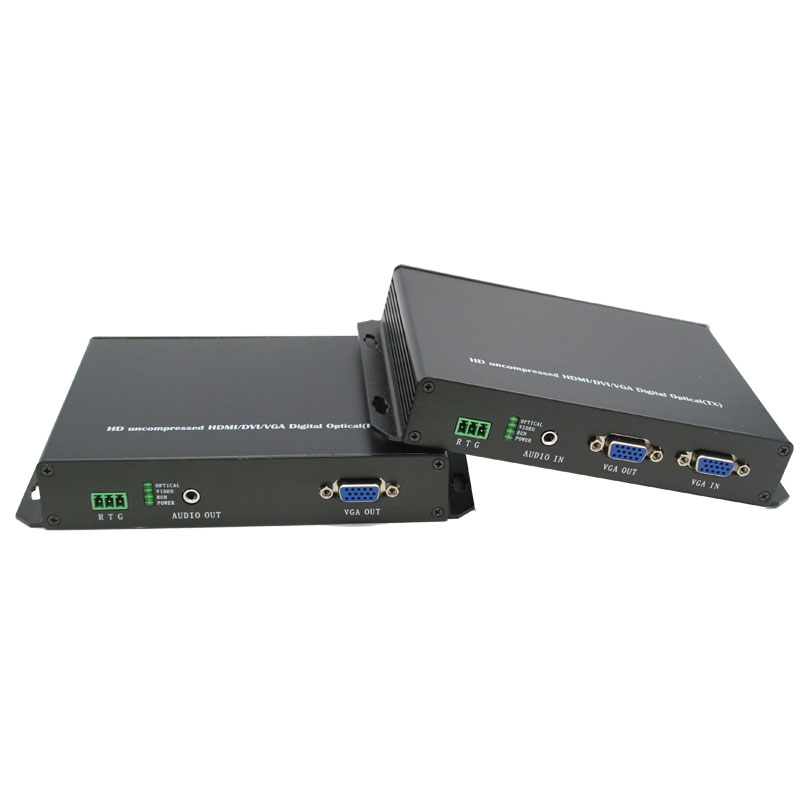

The VGA KVM Fiber Optic Extender consists of the transmitter and the receiver, use advanced uncompressed digital HD video and high-speed digital fiber optic transmission technology, you can easily transmit a variety of resolutions of computers, high-definition video sources, HD DVD / DVR and other equipment output of VGA HD signals over long distances to the remote, and with local VGA loop-through, independent analog audio, anti-interference ability, ensure signal integrity and stability.
All-digital, uncompressed, high-definition optical transmission
Delivers HD picture quality at resolutions up to 1920*1200@60Hz.
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.
Default: Single model 1-core (10km)
Multimode Dual-Core Module (300m)
Spport 20KM, 40KM, 60KM, 80KM OEM
Support RS232 signal unidirectional transmission, baud rate self-adaptive

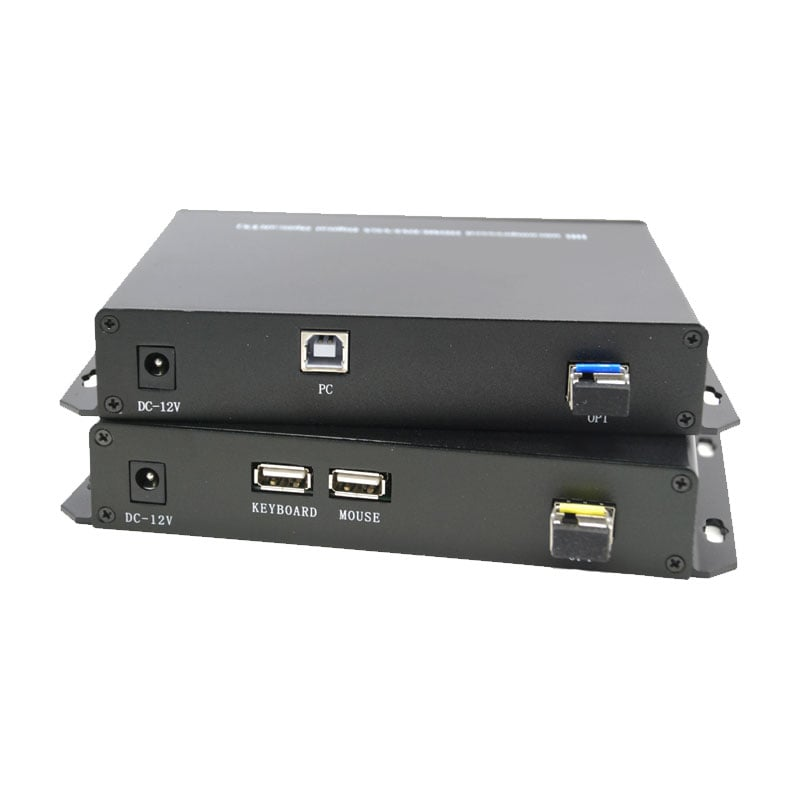

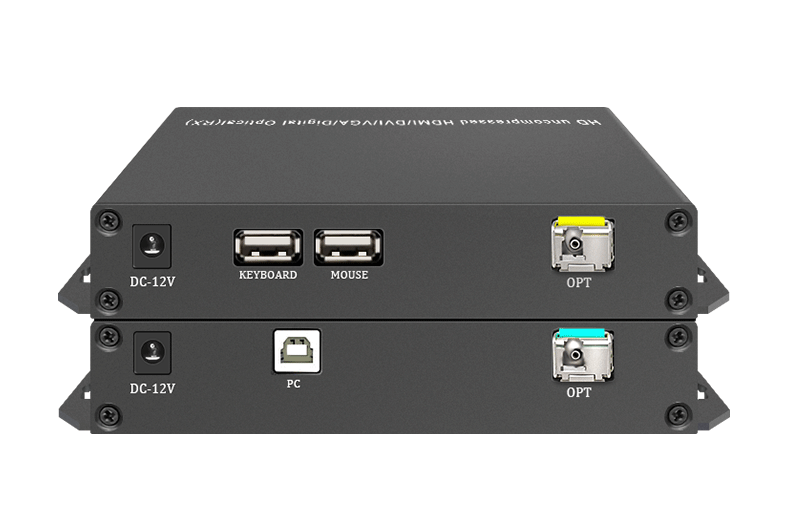

Remote USB supports USB external devices such as keyboard, mouse.
Support 3.5mm audio input/output, audio format 44.1K,48K,96K,176K,192K
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)

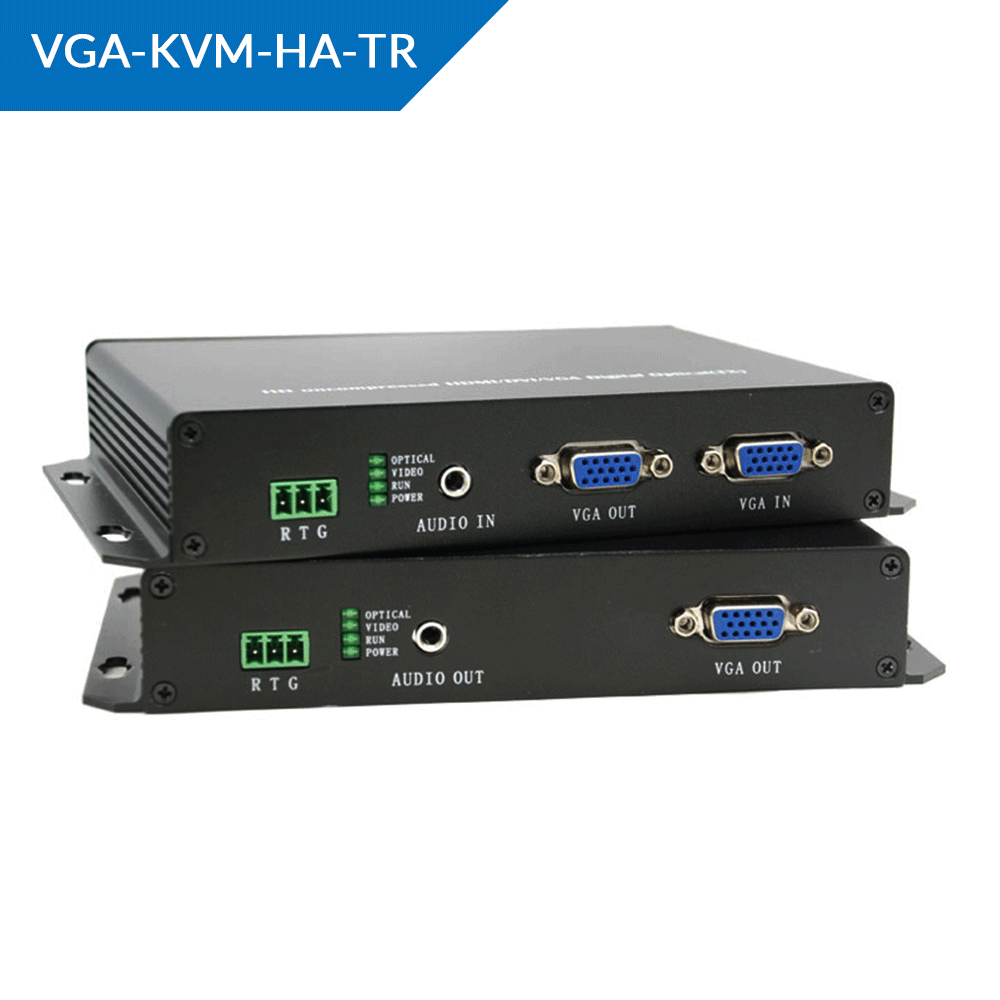

| Name | Uncompressed VGA KVM Fiber Optic Extender |
| Model | ZY-VGA-KVM-HA-T/R |
| Transmitter Input | VGA In*1, Audio In*1 |
| Transmitter Output | LC*1, RS232*1, VGA*1 |
| Recevier Input | LC*1, RS232*1 |
| Recevier Output | VGA*2, Audio*1 |
| Resolutuion | 1920 x 1200P60/1920 x 1080I60/1920 x 1080I50 1920 x 1080P60/1920 x 1080P50/1920 x 1080P30 1920 x 1080P25/1920 x 1080P24/1280 x 720P60 1280 x 720P50/1680 x 1050P60/1600 x 1200P60 1600 x 900P60/1440 x 900P60/1400 x 1050P60 1366 x 768P60/1360 x 768P60/1280 x 1024P60 1280 x 800P60/1024 x 768P60/800 x 600P60 |
| Transmission distance | Default: Single model 1-core (10km) Multimode Dual-Core Module (300m) Spport 20KM, 60KM,80KM OEM |
| Audio | Interface: 3.5mm Format: 44.1K,48K,96K,176K,192K |
| RS232 | unbidirectional transmission Interface:DB9 Baudrate:11520 Data-Bits:8bit |
| Support KVM | √ |
| Temperature | -5℃~＋70℃ |
| Humidity | <90%, No condensation |
| Power Consumption | ＜4W |
| Power | 12V/DC 1A |
| Size | 175mm×115mm×30mm |
| Weight | TX:0.4kg RX:0.4kg |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
