【Uncompressed Transmission】 HDMI to fiber converter can transmit the uncompressed signals up to 20km with no delay and no loss, audio and video synchronous transmission
【Up to 20KM Extension】 This HDMI Fiber Extender over fiber sends HD HDMI signal to remote transmission through a single mode 1 core fiber optic cable with LC connector
【Full HD Resolution】HDMI fiber extender supports resolutions up to 1920*1200@60Hz, provide you a smooth, stable and high quality video experience, and compatible backwards with lower resolution
【Excellent Quality】 Compliant with HDMI 1.3b, support EDID and RS232 command control
【Multi-scene Application】 HDMI over fiber extenders is great ideal for applications such as security monitoring, broadcast, video conferencing, multimedia classrooms, high-end medical imaging, interactive digital signage, home theatres, education systems and even industrial automation
【Plug and Play】 Simple to install, plug and play, no setup or configuration needed
Extend HD video source up to 20KM over single mode 1 core cable;
Uncompressed Transmission with no delay and no loss;
Support EDID/RS232, compatible with HDMI1.3b, HDCP1.2
Plug and play, no setting required.

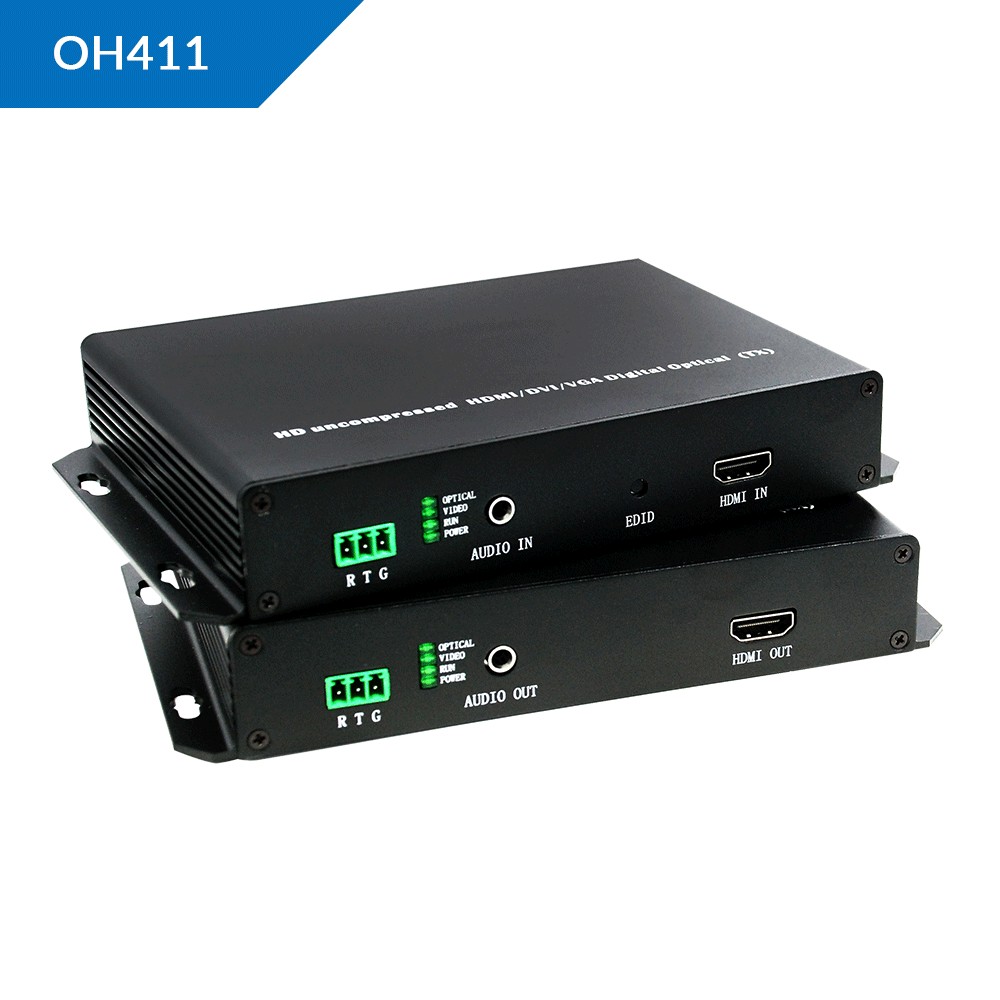

OH411 is a fiber-based extender designed to extend uncompressed HD Video signals up to 300m(Using Multimode Dual Core SFP) or 20km(Using Single model core SFP) over duplex fiber cables.
The Fiber Optical Extender has excellent image processing and transmission capabilities, making signal transmission smoother and more stable. It is a reliable, high-performance and efficient way to extend HDMI signals.
It is widely used in exhibitions, subway, radio and television, video conferencing, medical teaching, educational recording and broadcasting, projection integrat ion and other industries wi th high video requirements.
HDMI to fiber converter can transmit the uncompressed signals up to 20km with no delay and no loss, audio and video synchronous transmission.
Delivers HD picture quality at resolutions up to 1920x1200@60Hz, compatible backwards with lower resolution. Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.
Extend HD signals up to 20KM over a single mode one core fiber cable, or extender HD signals up to 300 meters over a multimode dual core fiber cable.
Transmission 40KM/60KM/80KM can be customised.
Use the EDID copy function on the transmitter to help with audio and video signal incompatibility issues between the source and display.
Support Serial RS232 Signal and external stereo audio, compatible with HDMI1.3b HDCP1.2
Plug-and-play operation with no software required for easy, immediate installation
| Name | Uncompressed 1920x1200@60 HDMI Fiber Optical Extender |
| Model | ZY-OH411 |
| Video | |
| Interface Standard | HDMI 1.3b；HDCP 1.2 |
| Resolutions | 800x600P60; 1024x768P60; 1280x800P60; 1280x1024P60; 1360x768P60; 1366x768P60; 1400x1050P60; 1440x900P60; 1600x900P60; 1600x1200P60; 1680x1050P60 1280x720P50; 1280x720P60; 1920x1080P24; 1920x1080P25; 1920x1080P30; 1920x1080P50; 1920x1080P60; 1920x1080I60; 1920x1080I50; 1920x1200P60 |
| Pixel Bandwidth | 165MHz |
| Audio | |
| Interface | 3.5mm aduio |
| Format | 44.1K, 48K, 96K, 176K, 192K |
| RS232 | |
| Interface | DB9 |
| Baud rate | 115200 |
| Data bit | 8digits |
| Cable | |
| Interface | LC |
| Wavelength | Single mode: 1310nm, multimode: 850m |
| Distance | 20KM(default single mode); 40KM 60KM 80KM (Optional) 300m (multimode) |
| Other | |
| Temperature | -5 ~ +70℃ |
| Humidity | 5~90 % |
| Power Consumption | 4W/Unit |
| Power supply | DC 12V1A |
| Dimensions(L*W*H) | 175×115×30mm(L*W*H) |
| Weight | 0.4KG/unit |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
