Brand: ORIVISION
Model: ZY-OH401
Transmitter Input: HDMI 1.3b*1 Audio In*1
Transmitter Output: LC*1 Audio out*1
Recevier Input: LC*1 Audio In*1
Recevier Output: HDMI*1 Audio out*1
Resolutuion: Max 1920*1200@60Hz
Transmission Distance: Default:Single model 1-core (10km); Multimode Dual-Core Module (300m); Spport 20KM, 60KM,80KM OEM
Power: 12V/DC 1A
Full digital, no compression hd fiber transmission
SFP (LC) optical attenuation -3db
Standard distance transmission 10KM, distance can be customized
Built-in ESD protection
Plug-and-play operation

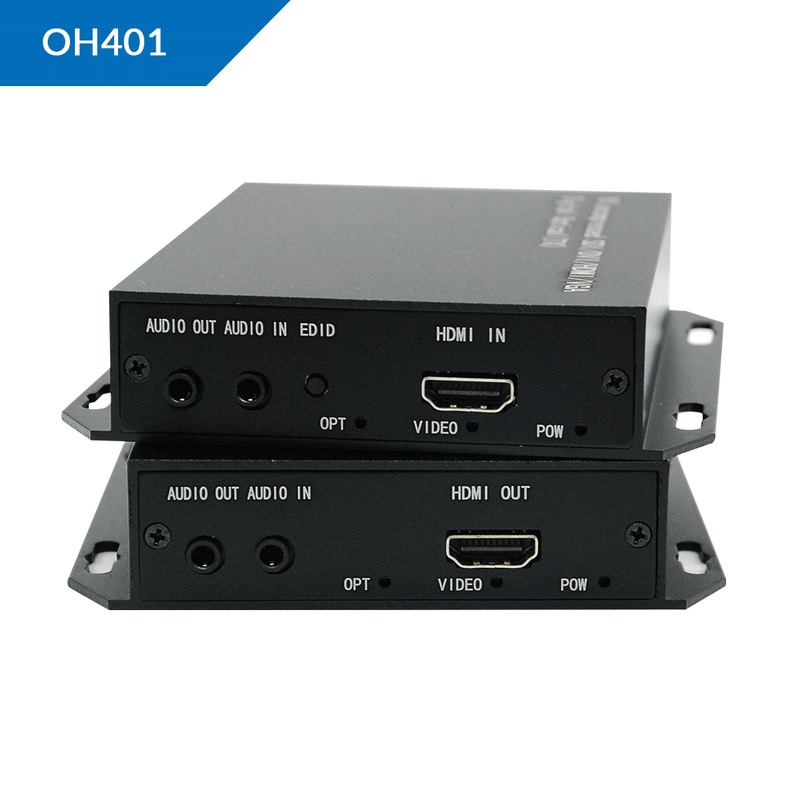

HDMI fiber optical extender provides long distance transmission of HDMI, audio signals over a single fiber. Designed specifically for AV systems, the Extender includes many integrator-friendly features such as EDID mode. Low energy consumption, long distance, plug and play, compatible, can achieve more accurate display.
The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Delivers HD picture quality at resolutions up to 1920*1200@60Hz.
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.
Full digital, uncompression hd fiber transmission, SFP (LC) optical attenuation -3db
EDID can identify a variety of display attributes
Default:Single model 1-core (10km)
Multimode Dual-Core Module (300m)
Spport 20KM, 60KM,80KM OEM
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | HDMI Optical Extender |
| Model | ZY-OH401 |
| Transmitter Input | HDMI 1.3b*1 Audio In*1 |
| Transmitter Output | LC*1, Audio out*1 |
| Recevier Input | LC*1, Audio In*1 |
| Recevier Output | HDMI*1, Audio out*1 |
| Resolutuion | 1920 x 1200P60/1920 x 1080I60/1920 x 1080I50/1920 x 1080P60/1920 x 1080P50/1920 x 1080P30 1920 x 1080P25/1920 x 1080P24/1280 x 720P60/1280 x 720P50/1680 x 1050P60/1600 x 1200P60 1600 x 900P60/1440 x 900P60/1400 x 1050P60/1366 x 768P60/1360 x 768P60/1280 x 1024P60 1280 x 800P60/1024 x 768P60/800 x 600P60 |
| Audio | Format:44.1K,48K,96K,176K,192K |
| SFP | Default:Single model 1-core (10km) Multimode Dual-Core Module (300m) Spport 20KM, 60KM,80KM OEM |
| RS232 | x |
| Support EDID | √ |
| Support HDCP | HDCP1.2 |
| Support KVM | x |
| Temperature | ‘-20℃ to +75℃ |
| Humidity | ≤90% |
| Power Consumption | ＜4W |
| Power | 12V/DC 1A |
| Size | 116*110*25mm |
| Weight | TX:0.13KG RX:0.13KG |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
