Full 1080P60 NDI Low Latency
Full NDI to HDMI Encoder or Decoder
Support for POE Power Supply
Support HDMI Loop Out
PTZ Control
Conspicuous Indicator Ligths
WEB UI Configuration
FULL NDI
Encoding & Decoding
PTZ Control

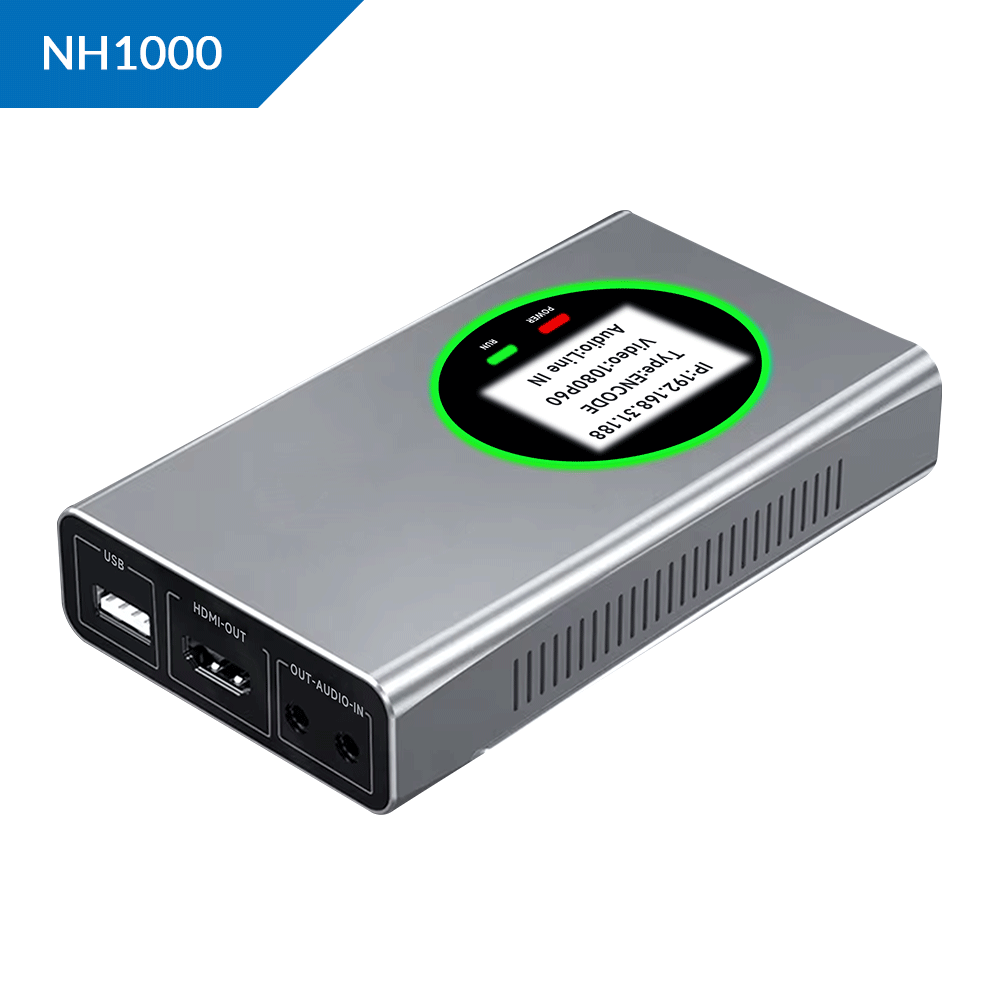

The NH1000 HDMI/NDI Bi-Directional Converter is a bi-directional HDMI converter that supports HDMI input (as NDI encoder) and HDMI loop output (also as NDI decoder output). It is capable of processing NDI sources from any camera, software or device.
Featured with powerful functions such as PoE, LCD display with big-sized tally, PTZ control, 3.5mm audio line in/out, NH1000 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.
The NDI encoder converts HDMI signals to Full NDI, enabling real-time transmission of PTZ conference cameras, HDMI pro cameras, and gaming content with ultra-low latency and high definition.
Both NDI encoding and decoding can work on this tiny device (132*75*26mm), you got two in one. Switching the working mode on the UI to choose the mode you need; it can easily meet all your different workflows.
NH1000 supports 3.5mm analog audio line in/out or embedded audio
Can be adjusted through the PC Web UI to control the connected PTZ camera, using USB to RS-232/RS-485/RS-422 serial port to control the PTZ camera, control protocol (Visca) for external PTZ control.
Full NDI Converter Support PoE and TYPE-C power supply, support Power over Ethernet (PoE), just a network cable, you can realize the power supply and network transmission, greatly simplify the field wiring problems. also support TYPE-C input, and can be easily powered by mobile power or camera batteries to power the device.

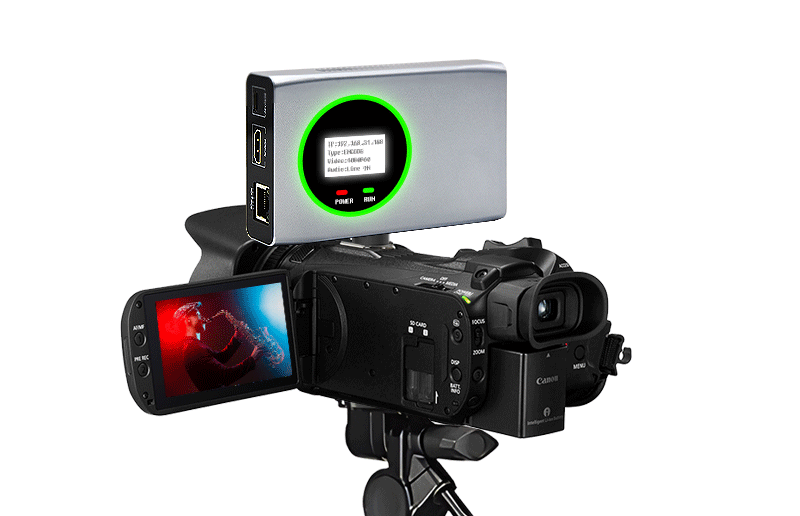

It has an exquisite design, small and light-weight, which can be easily attached to the camera by a threaded screw.
Equipped with indicators and an LCD screen displaying streaming status, the device information can be accessed and adjusted via the PC/tablet Web UI. It allows control of the connected PTZ camera, Tally light, video/audio, OSD, working mode, streaming, network, and system settings.
| Model | NH1000 | |
| Video input | 1*HDMI | |
| Video output | 1*HDMI(Loop or decoding output) | |
| Audio port | 1*Audio inout, 1*Audio output | |
| Network | 1*RJ45 1000Mbps Ethernet port (with PoE) | |
| Video resolution | 1080P60，1080P59.94，1080P50，1080P30，1080P29.97，1080P25， 1080P24，720P60，720P50 | |
| NDI® codec capacity | FULL NDI | |
| Power | PoE, DC optional. 5-18V wide range supported | |
| PTZ control | Network PTZ and Serial Port | |
| Management | Web UI | |
| TALLY light | RUN/Power | |
| LED display | IP/Type/Video/Audio | |
| Dimension | 132x75x26mm(5.2'*2.96'*1.02'in) | |
| Weight | 0.25kg | |
Apply to IP-based post production, video output to screen, low latency transmission, video conferences, etc.
