Brand: ORIVISION
Model: ZY-EHV1401
Input Interface: HDMI*1, VGA*1, audio*1
Output Interface: LAN Port*1, HDMI*1, VGA*1, audio*1
Video Encoding: H.264/H.265
Protocol: HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif
Power: DC 12V/1A (Support KC/US/EU/UK/CE Power Standard )
Warranty: 1 Year
Certificate: CE & FCC & Rohs
HDMI/VGA Adaptive Selection
Multi protocols: HTTP, UTP, RTSP, RTMP, RTMPS, SRT, RTP, GB28181, ONVIF
1080P@60hz and so on
RS-232 Ready for PTZ control
OEM/ODM
ORIVISION's multi-interface video encoder have dual input interfaces, which encodes HDMI or VGA video source into IP streams for video transmission over the Internet WAN or LAN through a wired network. It supports H.265/H.264 high-performance encoding. Also, it supports the most protocols including HTTP (TS/FLV)/RTMP/RTMPS/RTSP(ES/TS)/ FLS/Multicast(UDP/RTP)/SRT/Onvif, etc.
HDMI/VGA adaptive selection
Input: HDMI or VGA
Output: HDMI or VGA loop-out
Maximum Output Resolution:
Stream 1 & Stream 2: up to 1080P@60hz
Stream 3 & Stream 4: up to 576P@60hz
Supports full range of protocols including HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif, that means live stream with RTMP/RTMPS.
Support Onvif Protocol, and NVR recording, such as Hikvision NVR…
Maximum input resolution: 1080P@60hz,
Maximum output resolution: 1080P@60hz
Resolution can be set separately
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

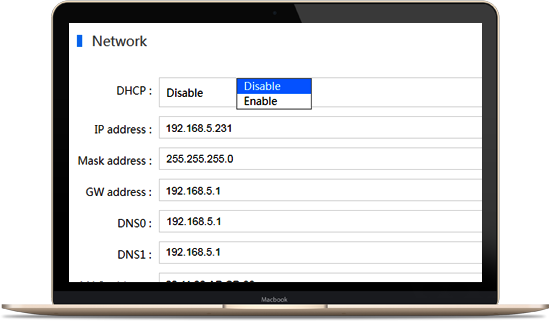

Support DHCP and obtain IP automatically
Support AAC/G711 audio format; Support Digital /Analog audio loop out. Audio can be coded separately

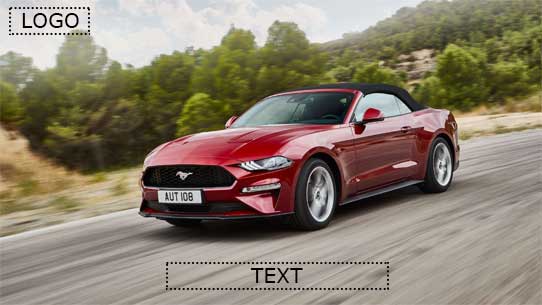

Add any self-defined text, time and image overlay at any position to announce your copyrights.
Hardware video encoder converts HDMI/VGA base-band video to H.265/H.264 IP streams, to achieve remote video transmission or live across internet WAN or over local network LAN.
Support HDMI, VGA, SDI, HD-SDI, 3G-SDI, CVBS......
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | H.265 1080P@60 HDMI/VGA Video Encoder With Loop Out |
| Model | ZY-EHV101 |
| Input Interface | HDMI*1, VGA*1, audio*1 |
| Output Interface | LAN Port*1, HDMI*1, VGA*1, audio*1 |
| Video Encoding | H.265/H.264 |
| Max Input Resolution | 1080P@60HZ |
| HDCP | √ |
| DHCP | √ |
| Audio Input Terminal | HDMI-IN/Analog audio-in |
| Audio Encoding | AAC/MP3/LCAAC/EAAC/EAACPLUS/G711 |
| Video Bit Rate | CVR/VBR: 16kbps~12Mbps |
| Audio Bit Rate | 48kbps~256kbps |
| Simultaneous Streams | Max. 2CH Streams at the same time |
| Protocol Support | HTTP(TS/FLV)/RTMP/RTMPS/RTSP(ES/TS) / FLS/Multicast(UDP/RTP) /SRT/ Onvif |
| OSD Setting | Txt/Picture |
| Output Interface | RJ45*1; Ethernet(10base-t/100base-tx) |
| Output Resolution | 1920*1080,1280*720,1280*800,1280*768,1024*768,1024*576, 960*540,850*480,800*600,720*576,720*540,720*480, 720*404,704*576,640*480,640*360,480*270,Auto |
| Live Streaming Platform | YouTube, Facebook, Wowoza… |
| Management | Web Opreation, remote upgrade |
| Language | English/Chinese |
| Power | 12V/DC 1A |
| POE | × |
| Size | W:195mm*D:112mm*H:25mm |
| Net Weight | 0.35kg |
Apply to TV programming, lecture capture, online courses, remote learning, course recording, broadcast meetings, Web training, remote pathology, telemedicine, conferences, concerts, sports, etc.
A: The default login IP address is 192.168.0.31
A: The default login account and password are both admin
A: It is recommended to change the browser and choose Google or Firefox with better compatibility to log in again. Or check if the network segment of the local link is 192.168.0.XX
A: The RST reset button on the device panel, press for about 5~10 seconds, the device will restart to restore the factory default settings. The OLD display screen allows you to see if the encoder has been reset successfully
A: Check whether the power adapter is connected, please use the power adapter originally provided by the manufacturer. Replace or troubleshoot the power adapter. If the POWER indicator still does not light up after the device is powered on, please contact us (support@orivision.cn) for repair or replacement.
A: Pls contact support@orivision.cn for the latest firmware information. By the way, please let us know in your email the version number of your existing software and why you need to update the firmware.
After get the newest firmware, pls follow the steps as below:
Step 1: Download the .rar file, do not unzip the file
Step 2: Log in to your Encoder or decoder web user interface and click the System button.
Step 3: Upload the .rar file and then click the Upgrade button. (Note: During the upgrade process, don't refresh or close the webpage, and don't power off. If you are prompted that the upgrade failed, pls don't reset it, just reboot it.)
Step 4: When the system prompts that the upgrade is successful, Pls reboot your encoder to finish installing updates.
