Brand: ORIVISION

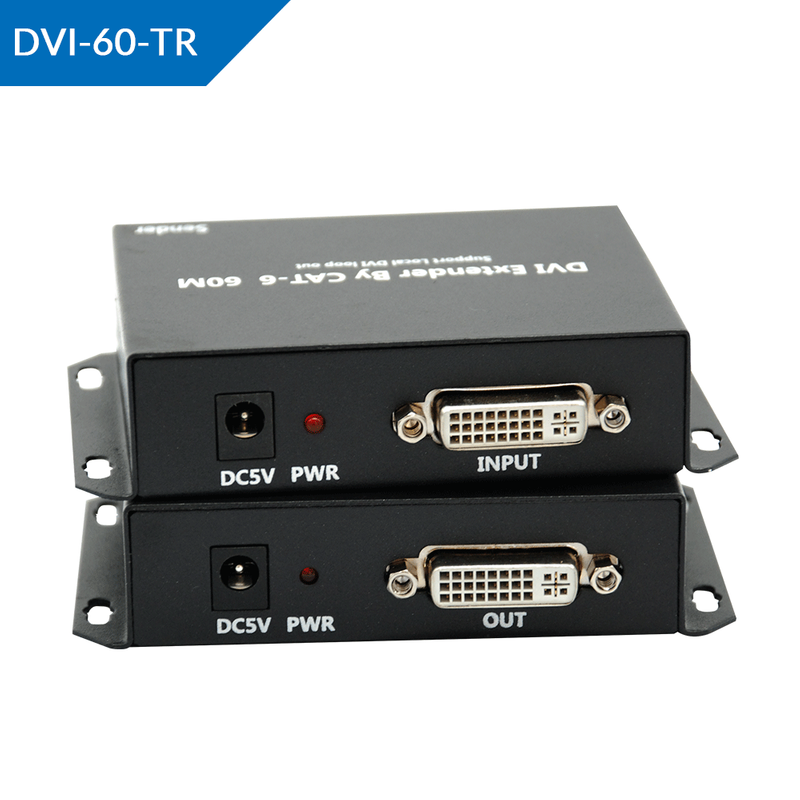

Model: ZY-DVI-60-TR

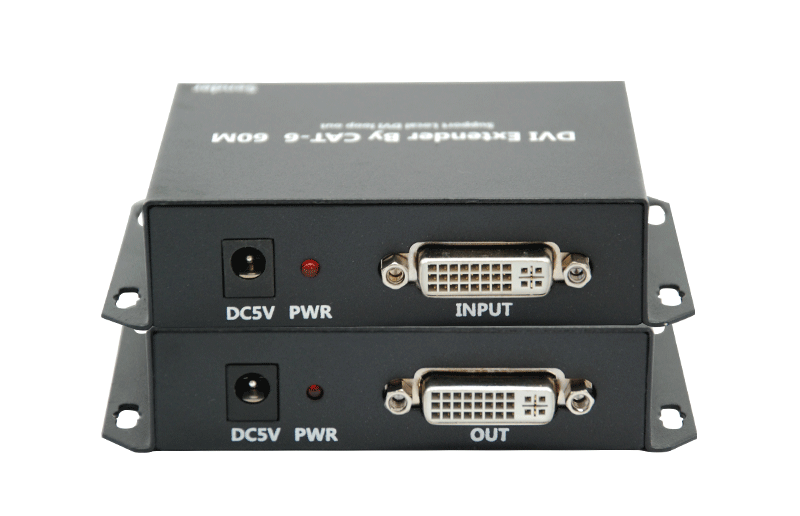

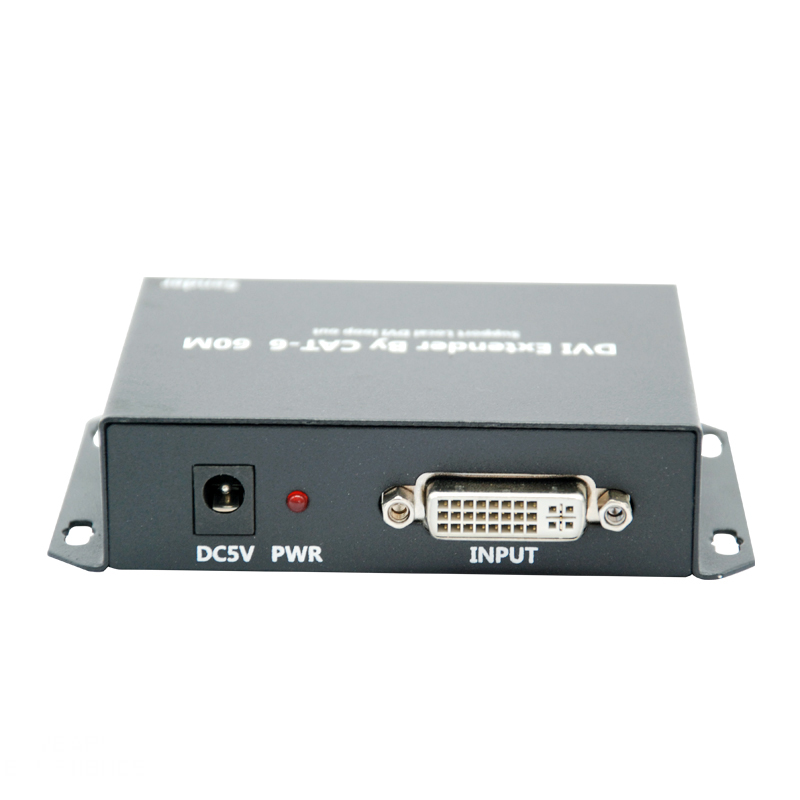

Transmitter Input: DVI*1

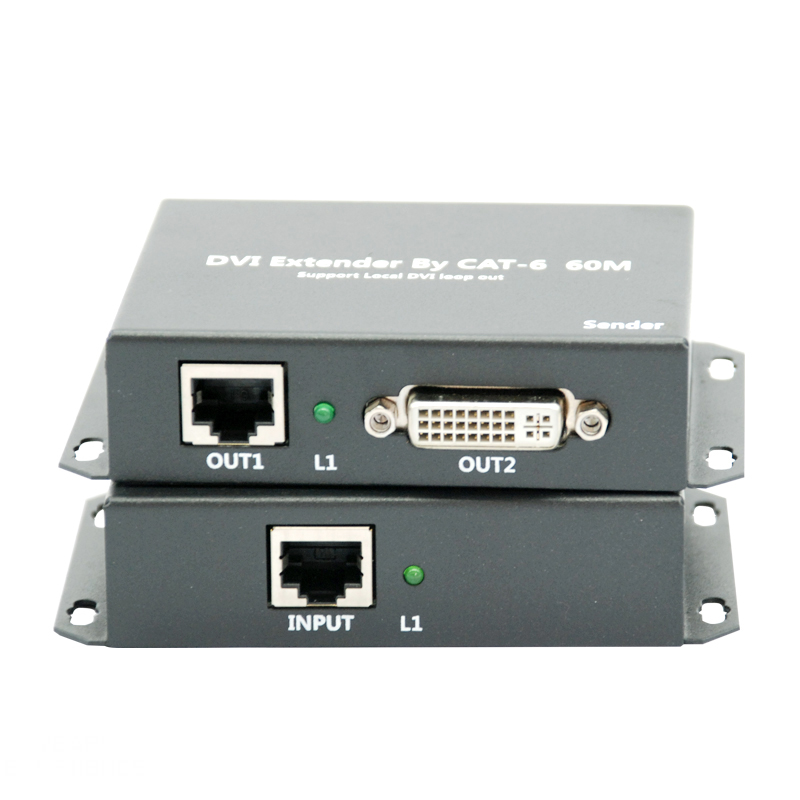

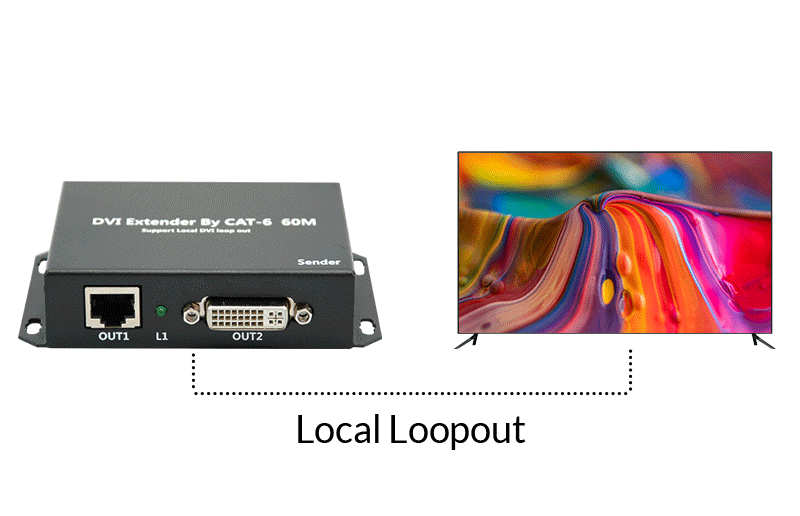

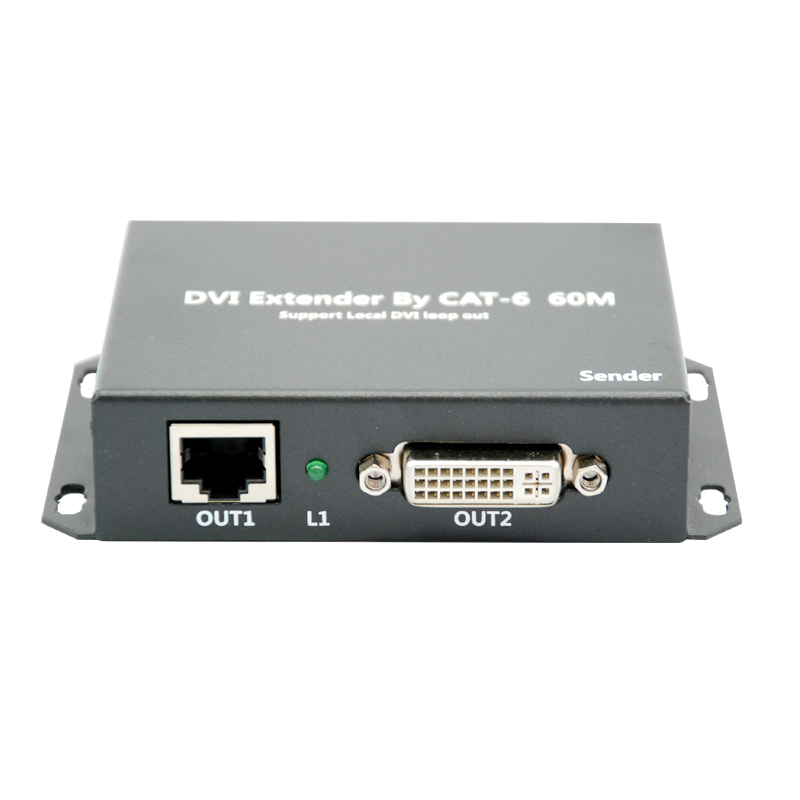

Transmitter Output: RJ45*1, DVI*1

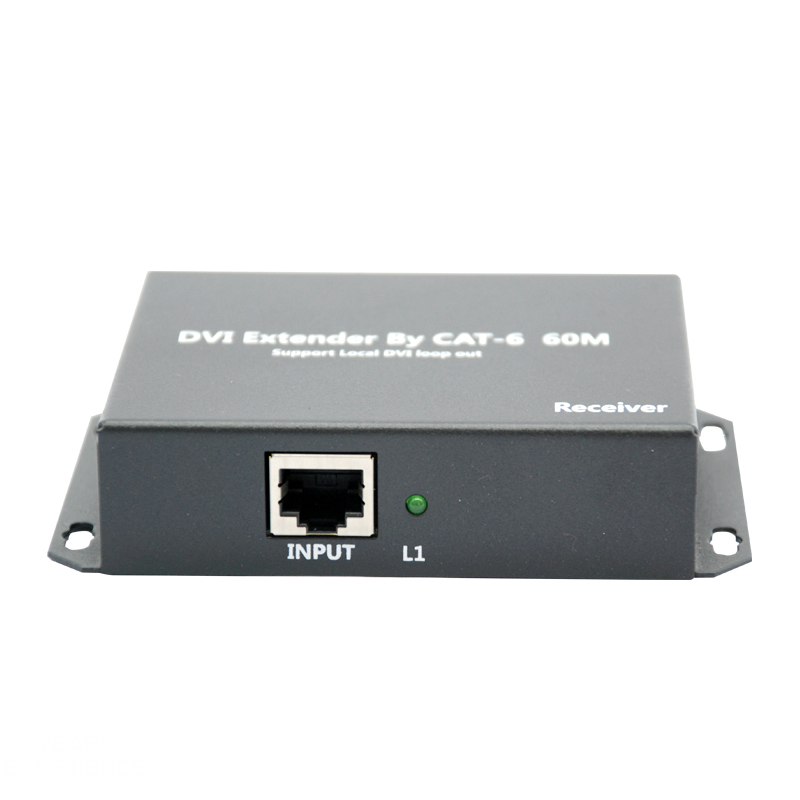

Recevier Input: RJ45*1
Recevier Output: DVI*1
Resolutuion: Max 1920*1080@60Hz
Transmission Distance: Point to point up to 60m
Power: 5V/DC 1A
Delivers HD picture quality at resolutions up to 1920*1080@60Hz
Support point to point, up to 120m
Support 3.4Gbps data rate and TMDS clock up to 340MHz
Support 8/10/12 bit deep color
Plug-and-play operation

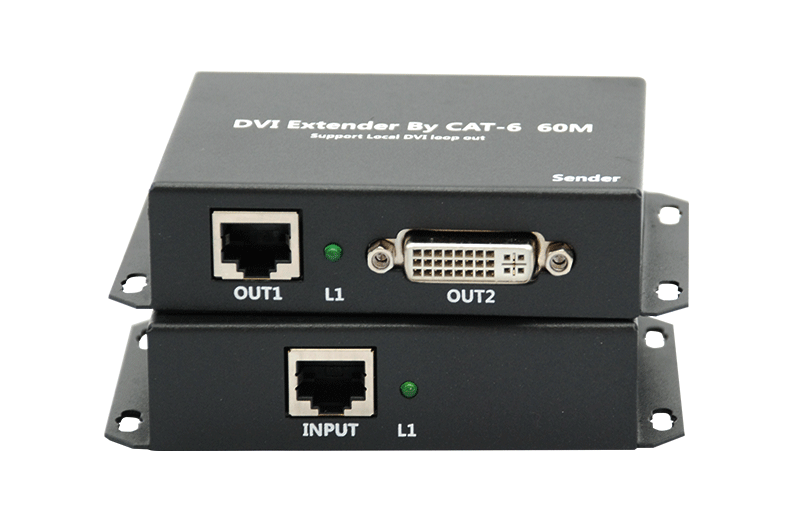

The HD extender provides extension of HD signals long distances over a single CAT6 cable, it supports high resolution up to 1080p@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Delivers HD picture quality at resolutions up to 1920*1080@60Hz.
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.
Transmits HD video and audio signals up to120m over a single CAT5/6 cable.
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | 60m 1080P@60 DVI Network Extender |
| Model | ZY-DVI-60-TR |
| Transmitter Input | DVI *1 |
| Transmitter Output | RJ45*1 DVI*1 |
| Recevier Input | RJ45*1 |
| Recevier Output | DVI *1 |
| Resolutuion | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Audio | DTS-HD/Dolby-ture HD/DTS/Dolby-AC3/DSD |
| Max bandwith | 340MHz |
| Max band rate | 3.4Gbps |
| Point to Poin Transmission Distance | up to 60m |
| Cable | Cat5/Cat6 |
| Temperature | ‘-15℃ to +55℃ |
| Humidity | ≤90% |
| Power | Input: AC (50HZ, 60HZ) 100V-240V; Output:5V/1A |
| POE | √(Optional) |
| Size | 81*61*24mm |
| Weight | TX:0.1KG RX:0.1KG |

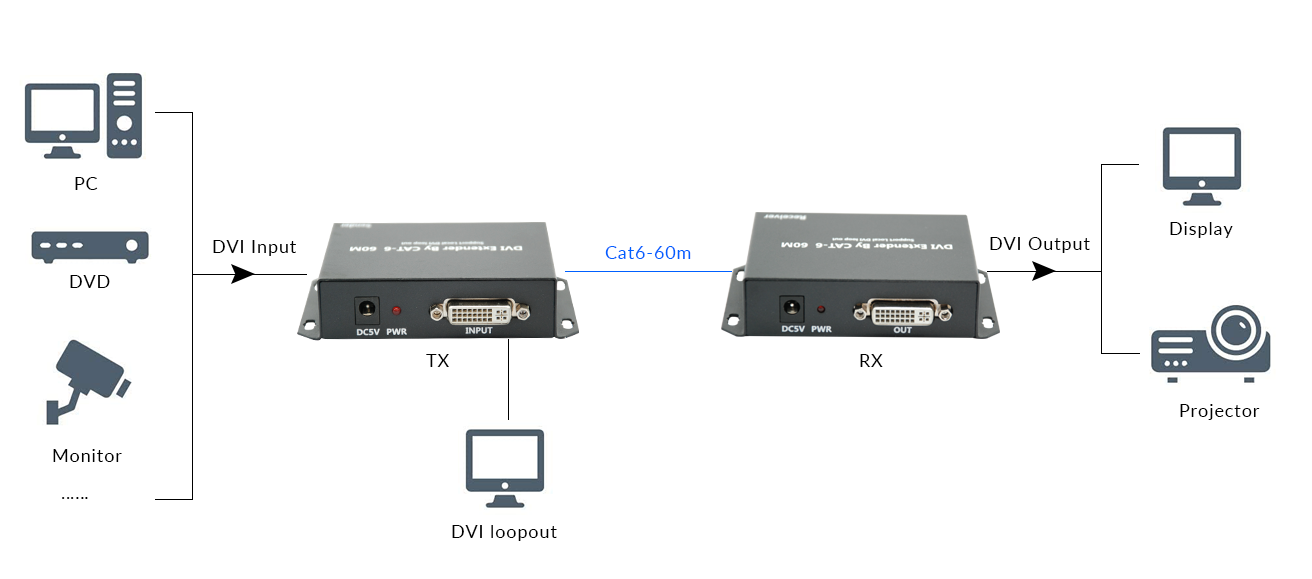

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
