Brand: ORIVISION
Model: ZY-CH801

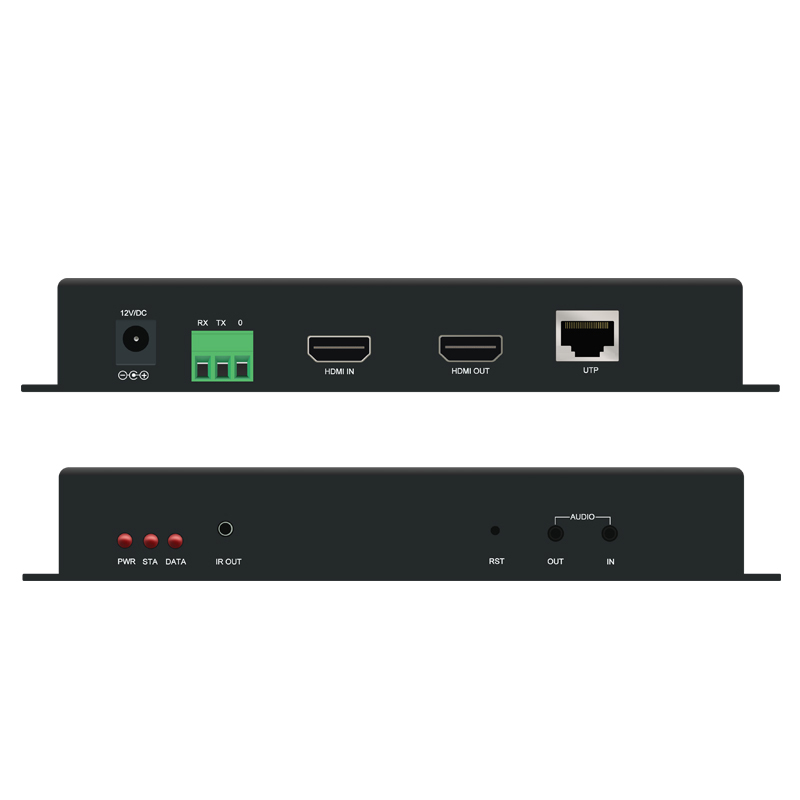

Transmitter Input: HDMI 1.4*1
Transmitter Output: HDMI Loop-out*1 RS232*1 RJ45*1, IR*1
Recevier Input: RJ45*1 RS232*1 IR*1 Audio in*1
Recevier Output: HDMI*1 VGA*1 RJ45*1 Audio out*1
Resolutuion: Max 3840*2160@30HZ
Transmission Distance: Point to point up to 120m, support point to multi-point
Power: 12V/DC 1A
Dual Interface Optional: HDMI/VGA
Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz

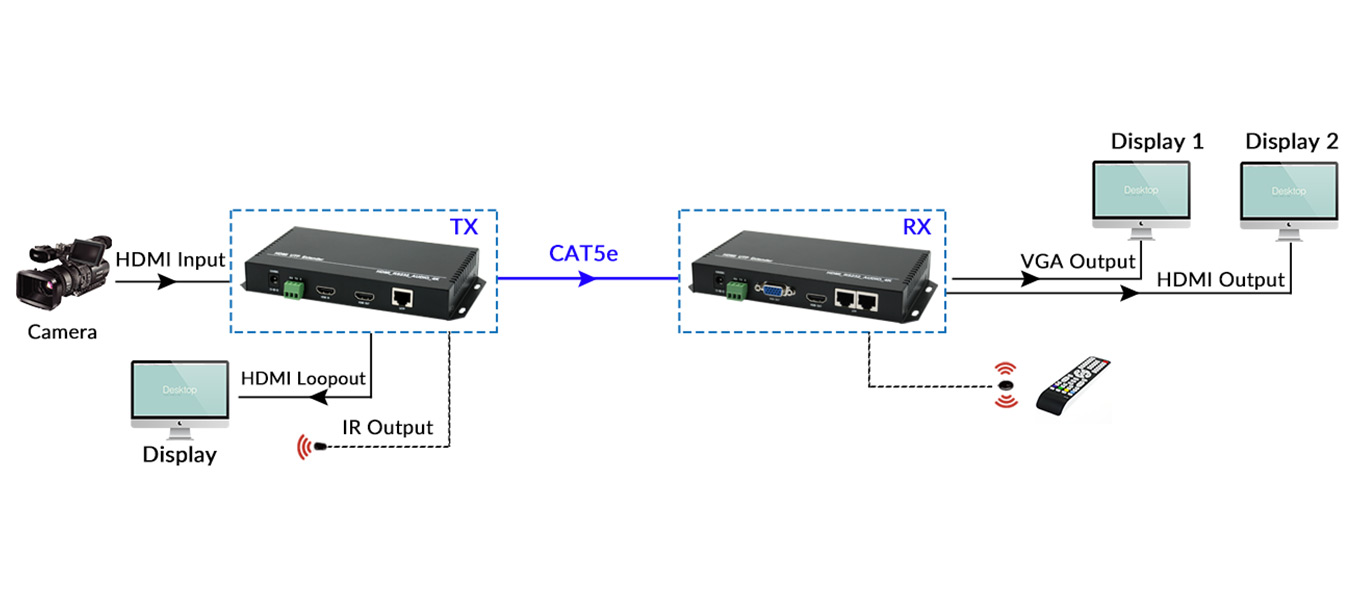

Support point to point, point to multi-point, cascade connection
Extend video/audio signal up to 120m over cat5e
Supports IR reverse transmission
Plug-and-play operation
This product transmits HDMI audio and video signal to 120m through CAT5e and above single network cable. It adopts TCP / IP network protocol and h.265 compression mode. It can realize transmission from one transmitter to multiple receivers through cascade receivers, and supports 253 receivers at most.
At the same time of long-distance transmission, it supports local HDMI output, bidirectional independent audio transmission, RS232 transparent transmission and infrared return. The player can be remotely controlled at the display end. Poe module can be selected to realize Poe power supply, and the installation of power adapter is unnecessary. Extender built-in EDID greatly improves the compatibility of the device.

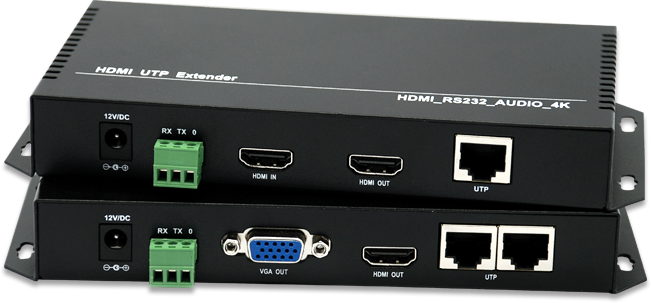

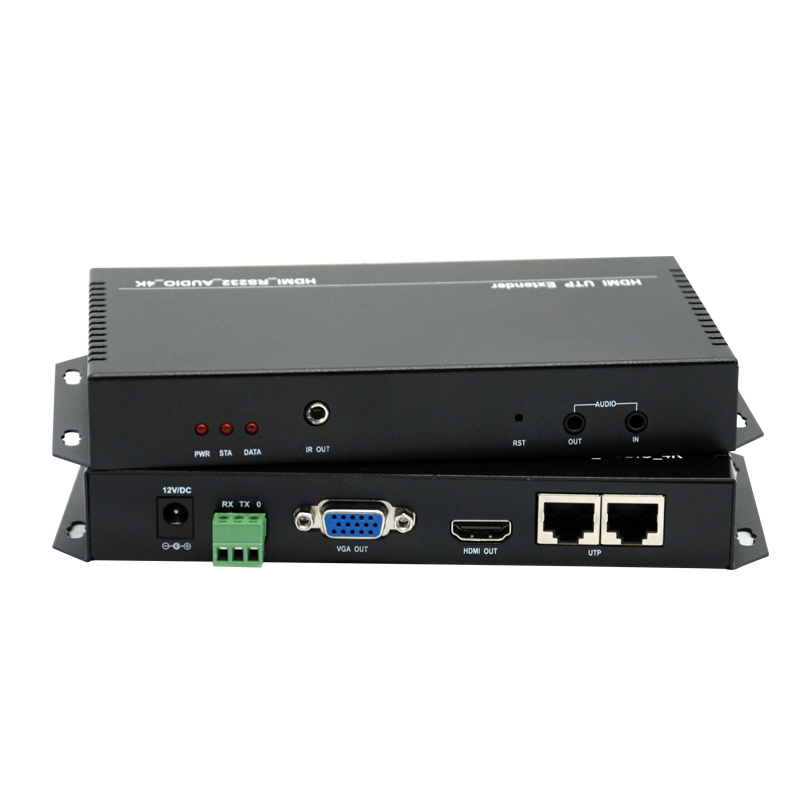

The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Orivision CH801 HDMI VGA extender 120m delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @30Hz.
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

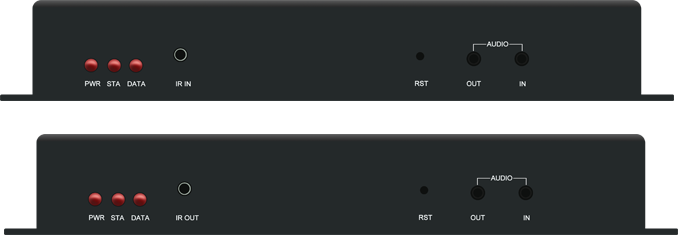

Orivision CH801 HDMI VGA extender 120m support IR (38Khz) signal return control, and IR return transmission can remotely control the player on the display side
Orivision CH801 HDMI VGA extender 120m support bi-directional independent audio transmission, RS232 transparent transmission

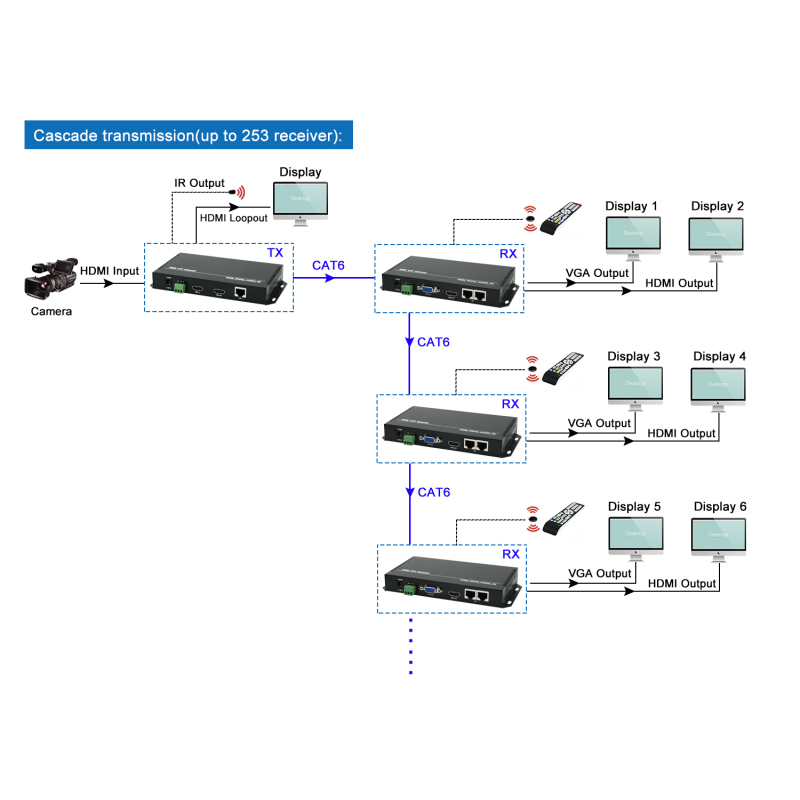

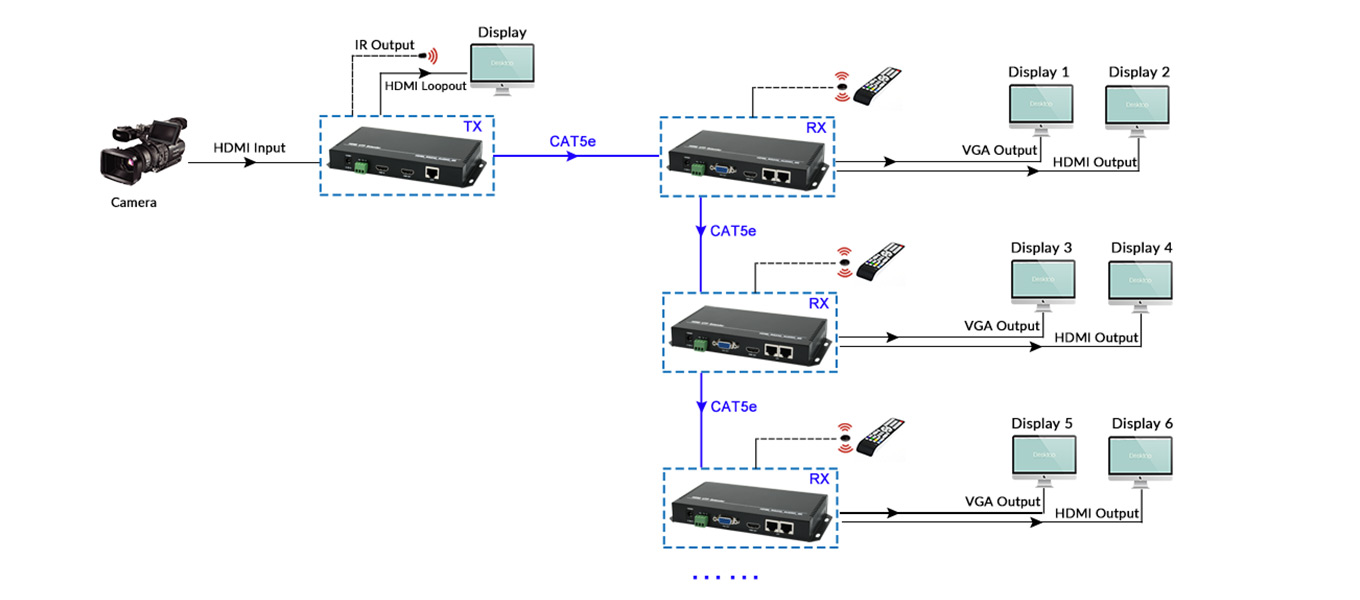

Orivision CH801 HDMI VGA extender 120m support point to point, point to multi point, cascade connection(up to 253 rx )
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your Orivision CH801 HDMI VGA extender 120m requirements to us. (info@orivision.cn)
| Name | 4K@30 HDMI TCP/IP Extender over Cat5e |
| Model | ZY-CH801 |
| Transmitter Input | HDMI 1.4 *1 |
| Transmitter Output | HDMI Loop-out*1 RS232*1 RJ45*1, IR*1 |
| Recevier Input | RJ45*1 RS232*1 IR*1 Audio in*1 |
| Recevier Output | HDMI*1 VGA*1 RJ45*1 Audio out*1 |
| Resolutuion | 3840*2160@30HZ VGA max support 1080P output; When HDMI input resolution exceeds 1080p, the VGA interface will automatically be turned off |
| Audio | Format:44.1K,48K,96K,176K,192K Duplex audio Transmit |
| Point to Poin Transmission Distance | up to 120m |
| Point to multi-point | 1000M Switch RX support to cascadable up to 253 points |
| RS232 | bidirectional transmission Interface: 3-core Phoenix terminal Baudrate: Fixed baud rate 9600bps (other baud rates can be set) Data-Bits:8bit |
| Support HDCP | HDCP1.4 |
| Support IR | √ |
| Support KVM | x |
| Cable | Cat5e/6 |
| Temperature | ‘-5℃ to +60℃ |
| Humidity | ≤90% |
| Power Consumption | ＜8W |
| Power | 12V/DC 1A |
| POE | √(Optional) |
| Size | 16.3*9.4*2.5CM |
| Weight | TX:0.3KG RX:0.3KG |
Orivision CH801 HDMI VGA extender 120m is widely used in audio and video transmission of HD conference system, HD video shooting, HD teaching system, HD digital advertisement, etc.
