Brand: ORIVISION
Model: ZY-CH611
Transmitter Input: HDMI 1.3*1
Transmitter Output: RJ45*1
Recevier Input: RJ45*1
Recevier Output: HDMI1.3*1
Resolutuion: Max 1920*1080@60Hz
Transmission Distance: Point to point up to 150m, support point to multi-point
Power: 5V/DC 1A

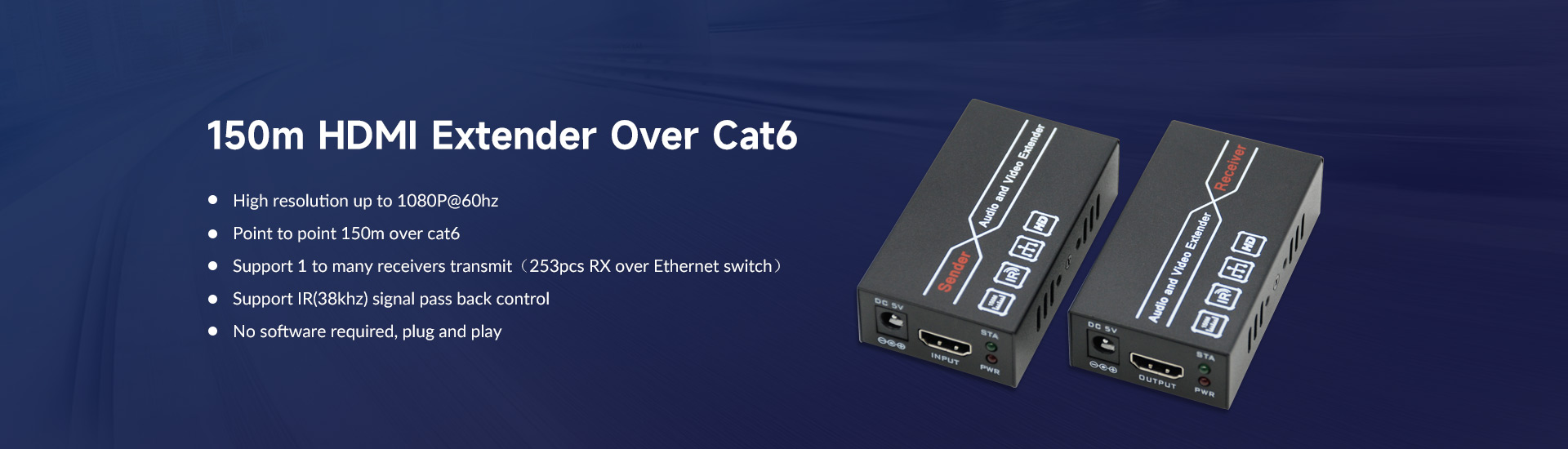

High resolution up to 1080P@60hz
Point to point 150m over cat6
Support 1 to many receivers transmit（253pcs RX over Ethernet switch）

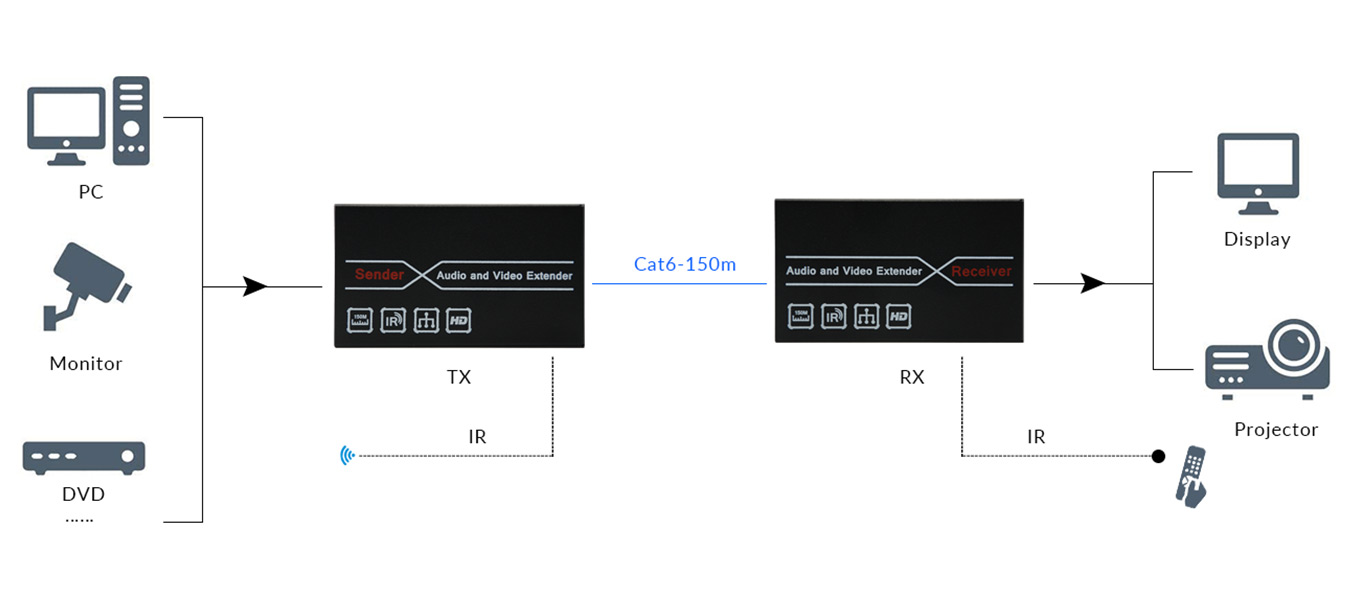

Support IR(38khz) signal pass back control
No software required, plug and play

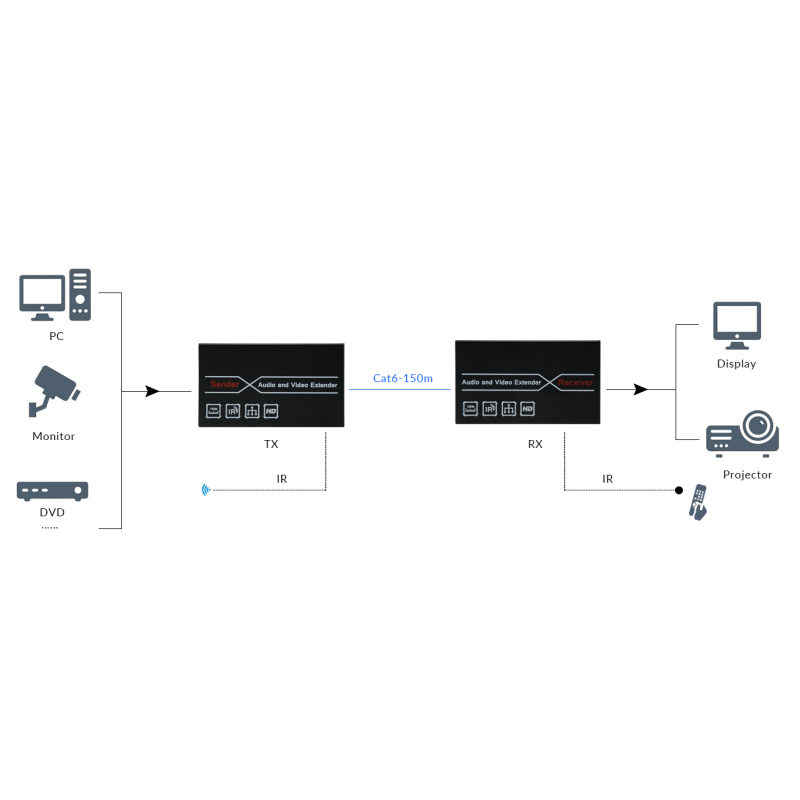

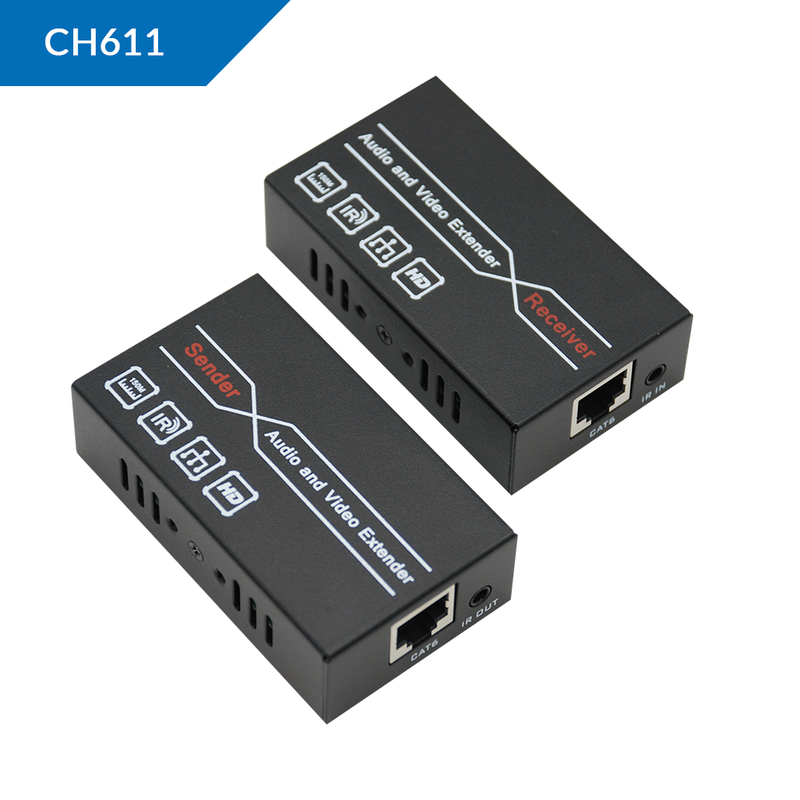

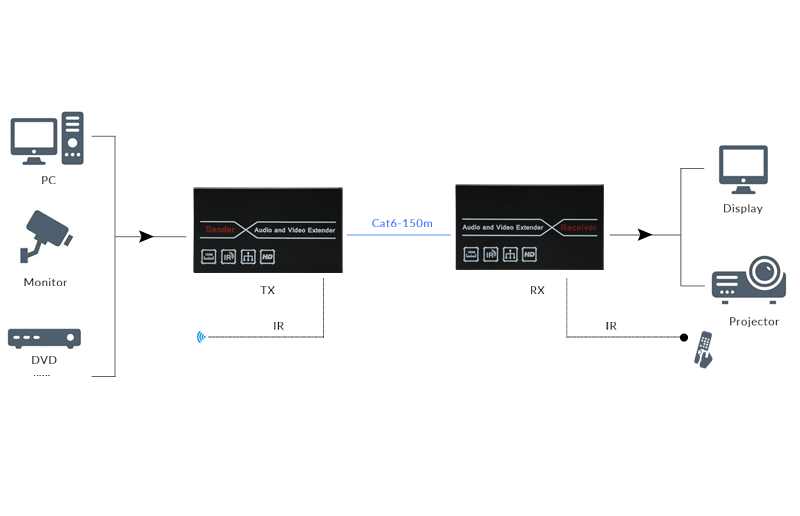

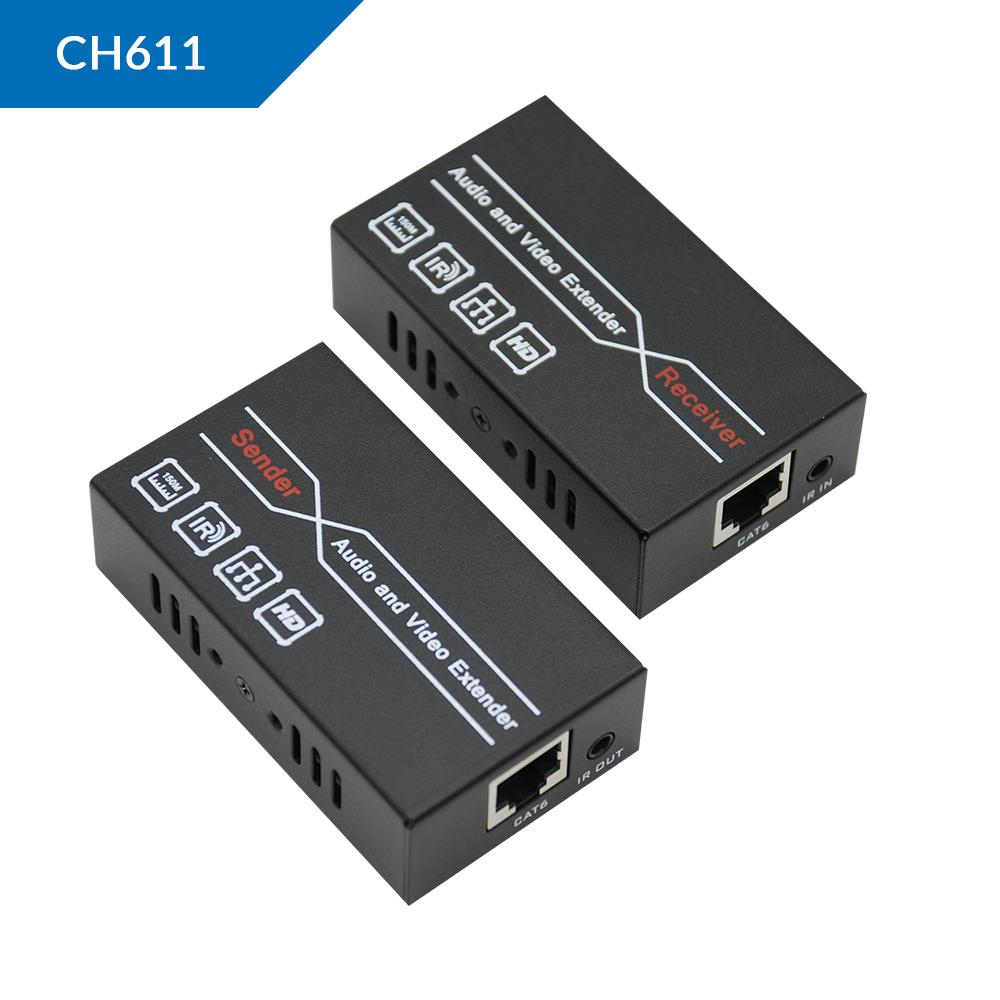

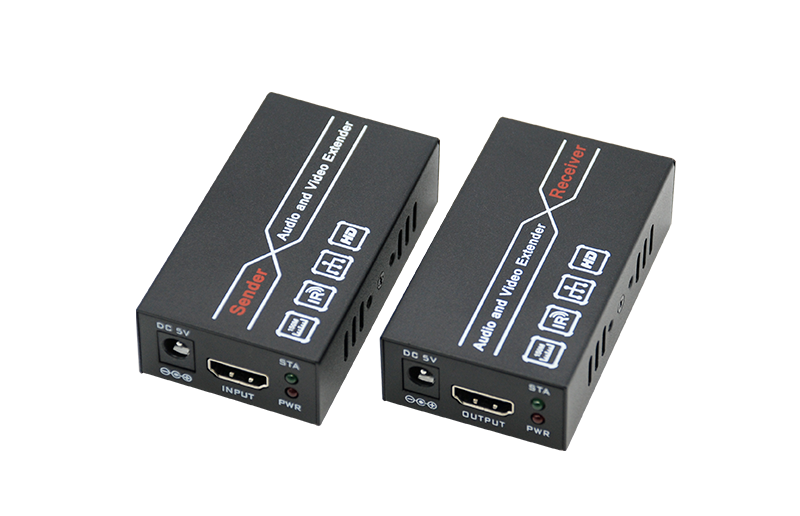

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 150meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.

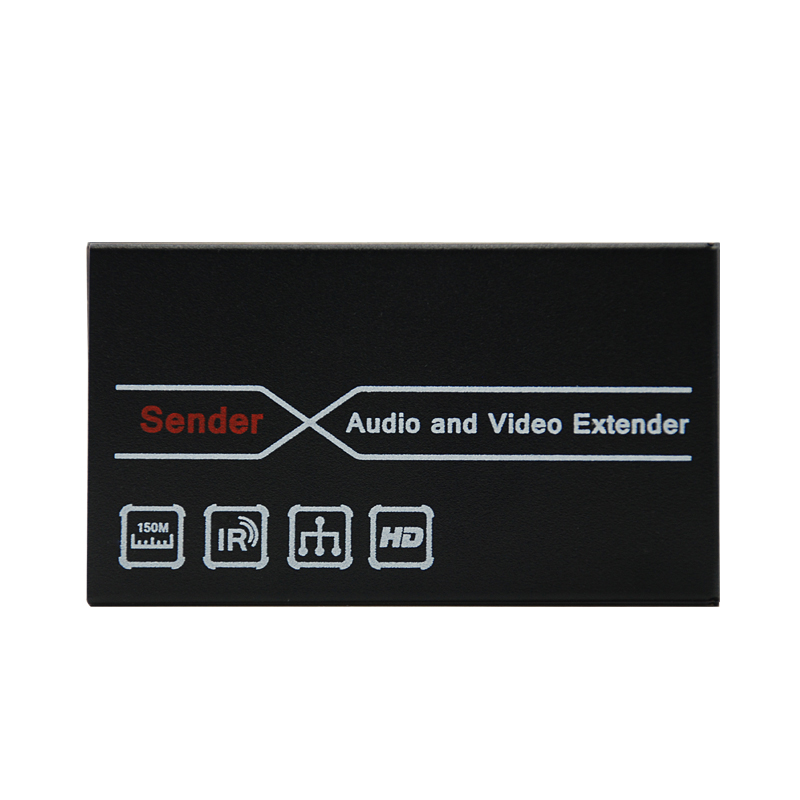

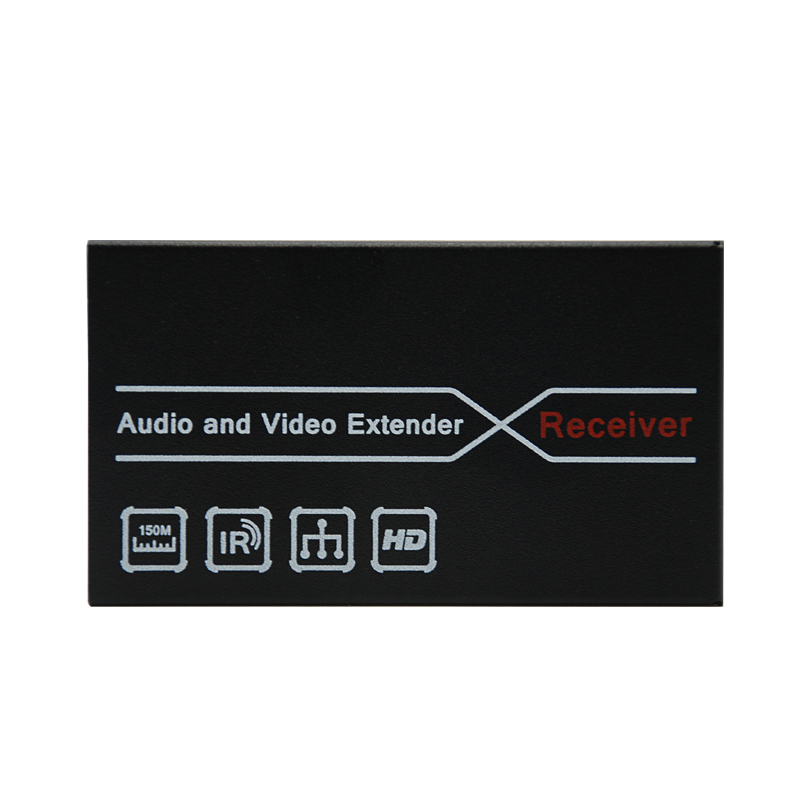

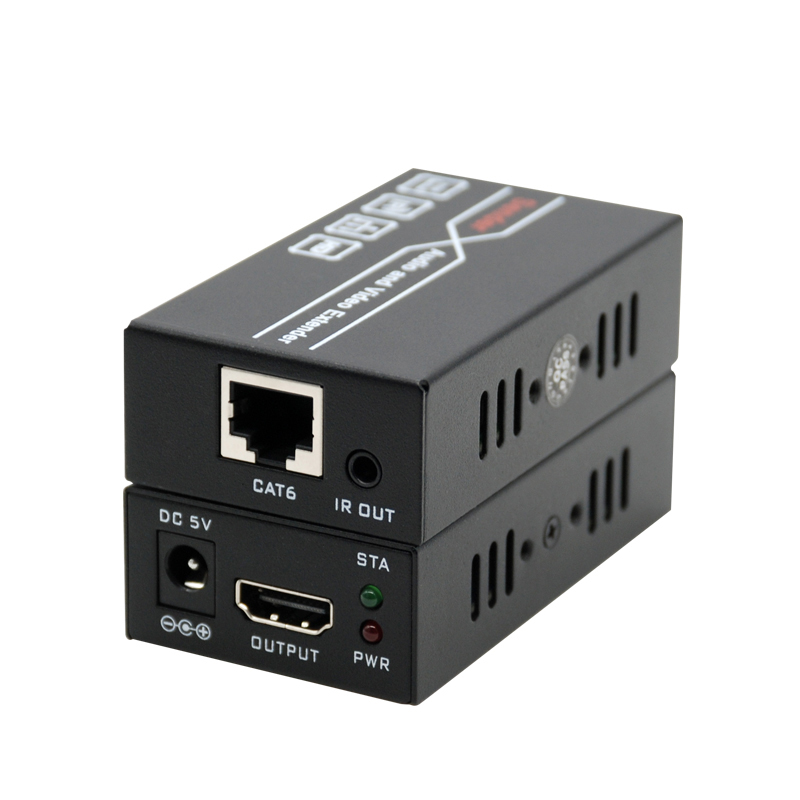

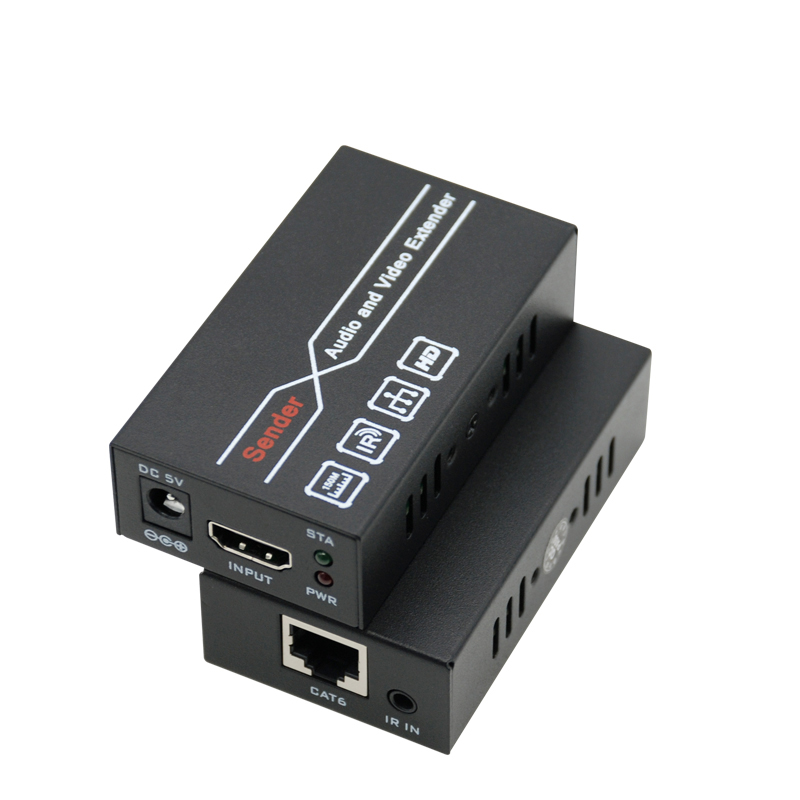

The metal case design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Delivers HD picture quality at resolutions up to 1920*1080 @60Hz
Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

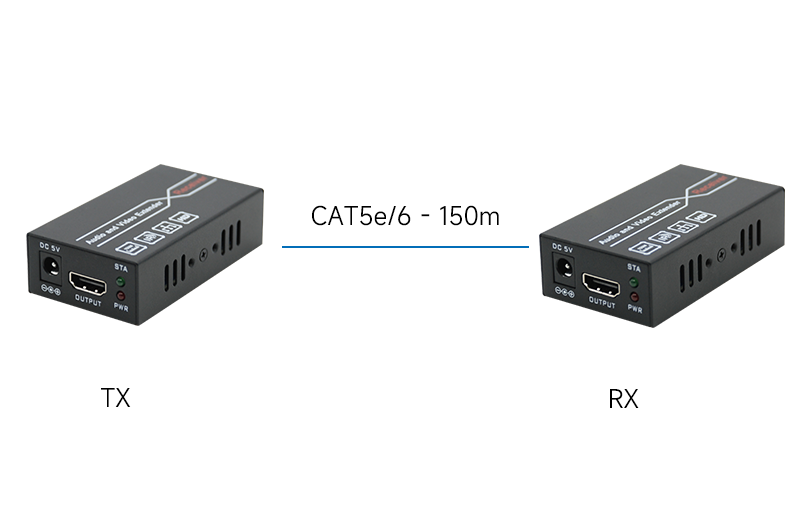

Transmits HD video and audio signals up to 150m over a single CAT6 cable.
Support IR(38khz) signal pass back control

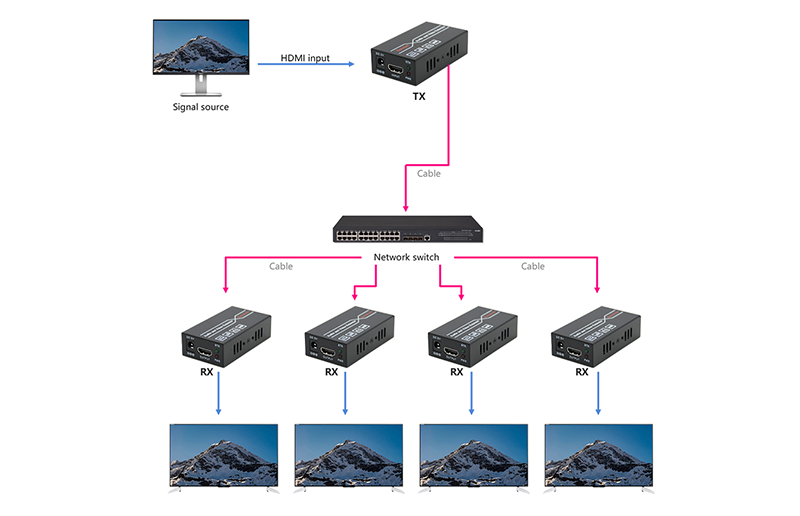

Support point to point, point to multi-point, up to 253 pcs RX.
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | 150m 1080P60 HDMI Network Extender |
| Model | ZY-CH611 |
| Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz Digital |
| Maximum data rate | 6.75Gbps |
| Resolution | 3D:1080p@60Hz; 1080i@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz, |
| HDMI Impedance | 100Ω |
| HDMI Connector | HDMI-A |
| IR Interface | 3.5mm earphone seat |
| IR Signal direction | Unidirectional |
| IR Signal type | Digital |
| IR frequency | 38kHz(Other Choice20-60kHz) |
| RJ45 Interface | RJ45 |
| Transmission distance | CAT6 --- 150m |
| Power supply | The power adapter: DC 5V/1A |
| Power dissipation | MAX 4W |
| Temperature | Operating: -5℃ ~ +70℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension | 79*43*23mm |
| The warranty | 1 year free warranty |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
