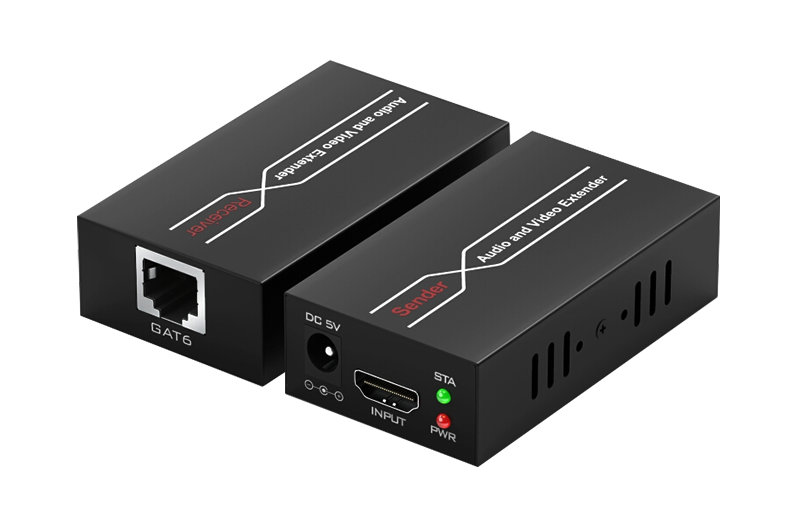

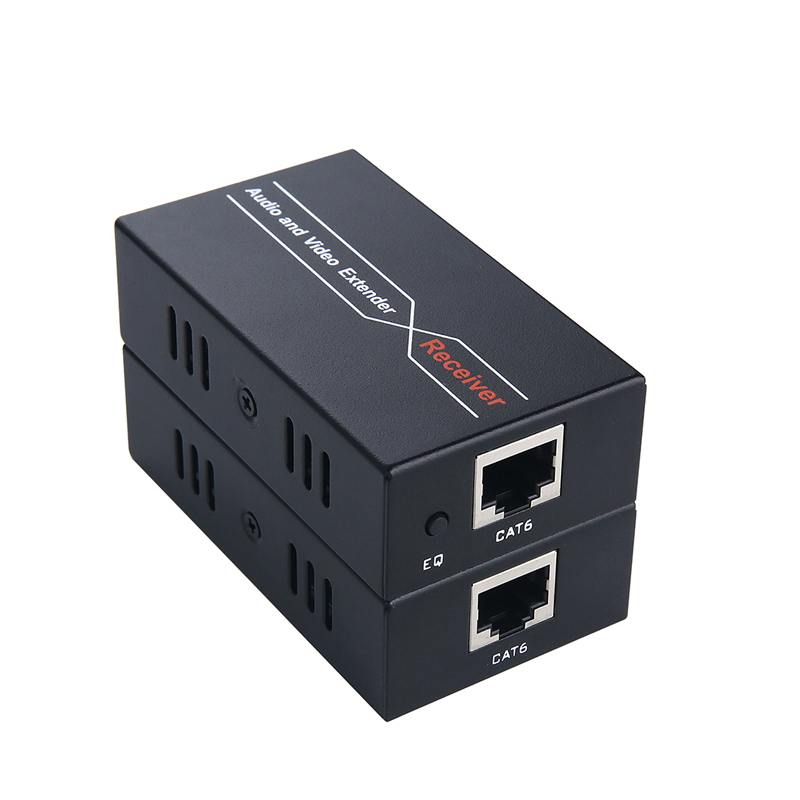

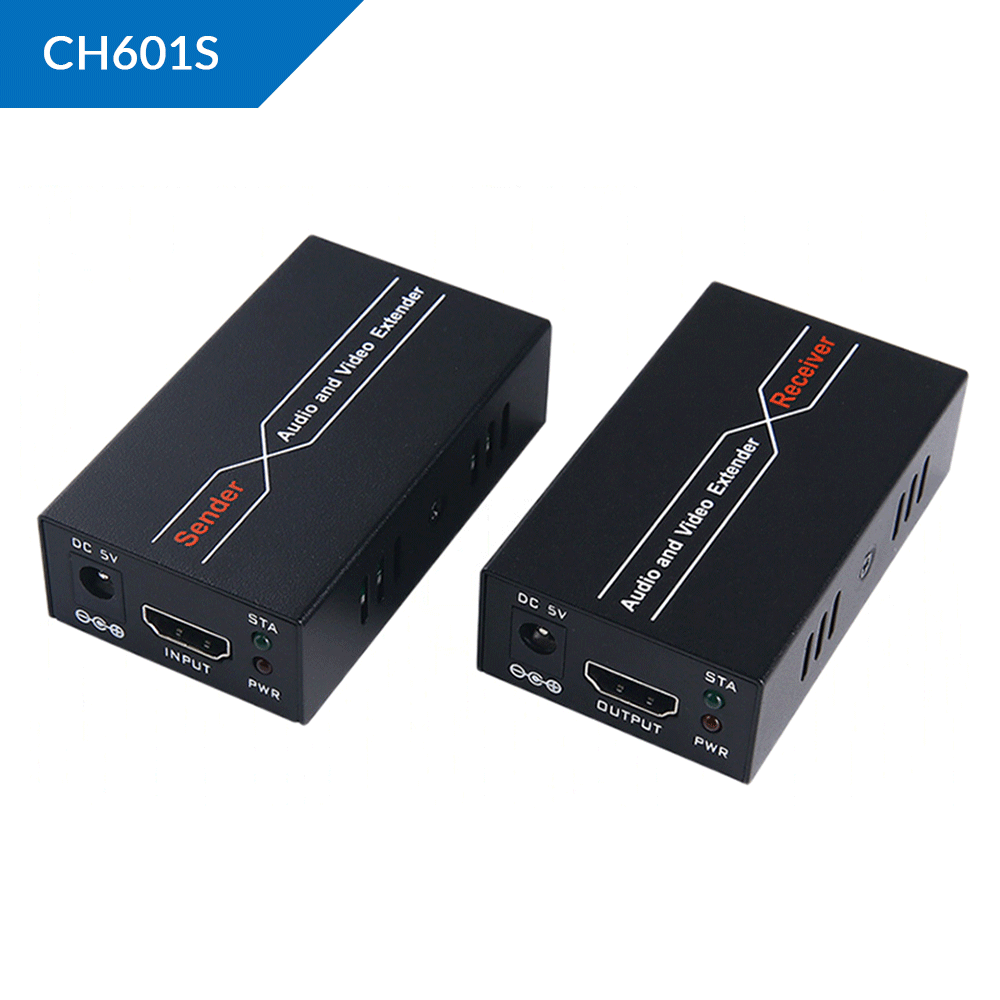

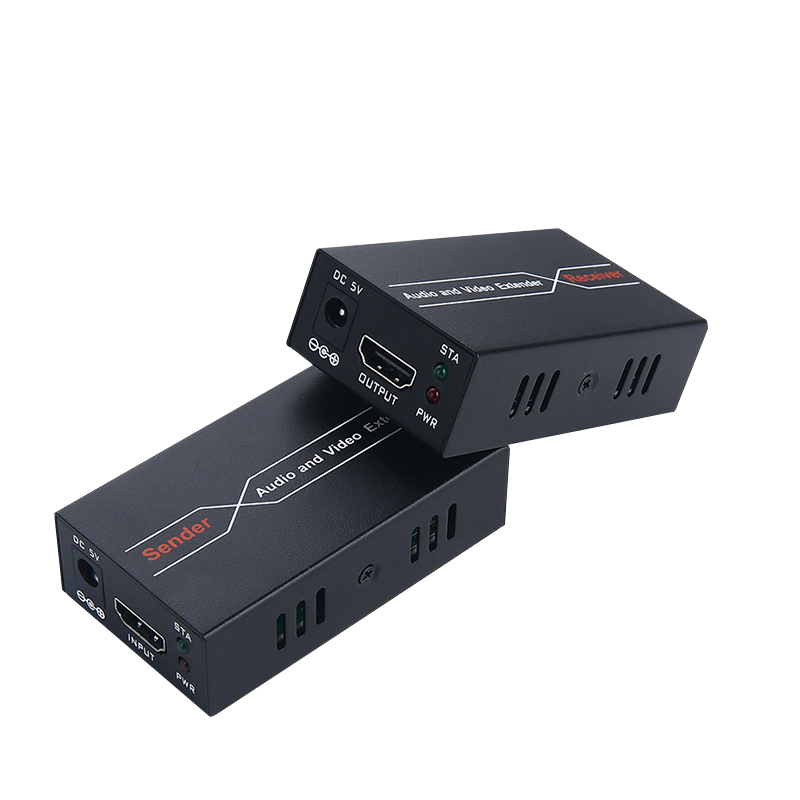

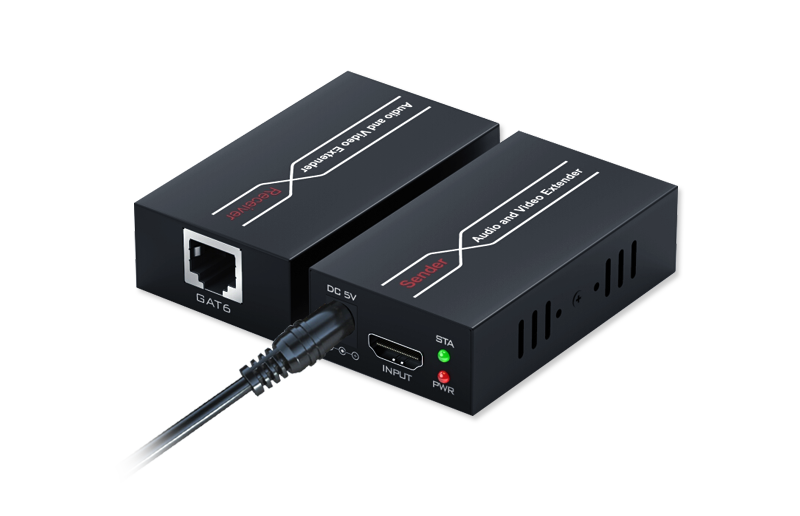

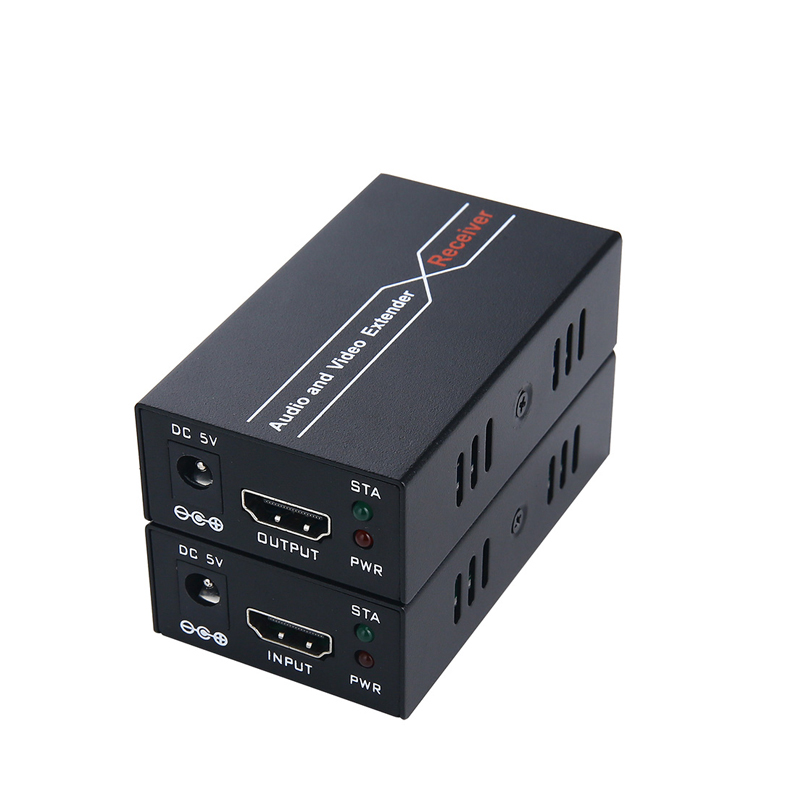

ORIVISION 60m 1080P60 HDMI Network Extender

Brand: ORIVISION

Model: ZY-CH601S

Transmitter Input: HDMI 1.3*1

Transmitter Output: RJ45*1

Recevier Input: RJ45*1

Recevier Output: HDMI1.3*1

Resolutuion: Max 1920*1080@60Hz

Transmission Distance: Point to point up to 60m

Power: 5V/DC 1A


196ft/60m HDMI Extender Over Cat6
196ft/60m HDMI Extender Over Cat6
  • High resolution up to 1080P@60hz, 3D

  • Point to point 196ft/60m over cat6

  • Support EDID and POC function

  • No software required, plug and play

196ft/60m HDMI Extender over Cat6

The HD extender provides extension of HD signals long distances over a single CAT6 cable, it supports high resolution up to 1080p, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

196ft/60m HDMI Extender over Cat6

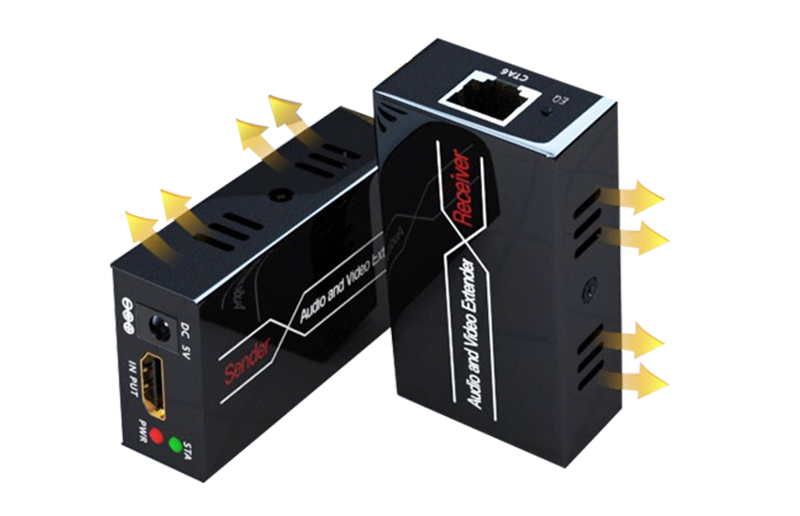

High Availability and Friendly Design

The metal case design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.

High Availability and Friendly Design

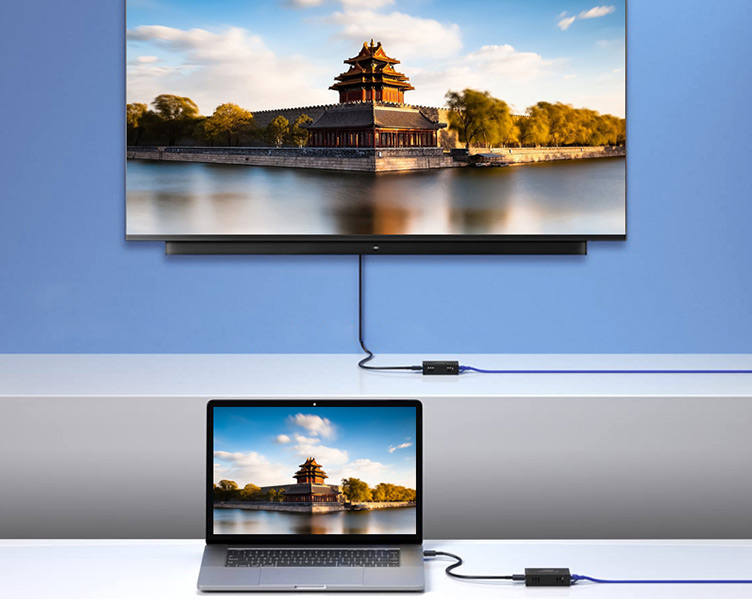

HD Quality Transmission

Delivers HD picture quality at resolutions up to 1920*1080 @60Hz, 3D signal

Enjoy bright, clear video with accurate color rendition and sharpness, even when long distance transmission.

HD Quality Transmission
196FT/60M Long Distance Transmission

Transmits HD video and audio signals up to 196ft/60m over a single CAT6/6a/7 cable.

196FT/60M Long Distance Transmission

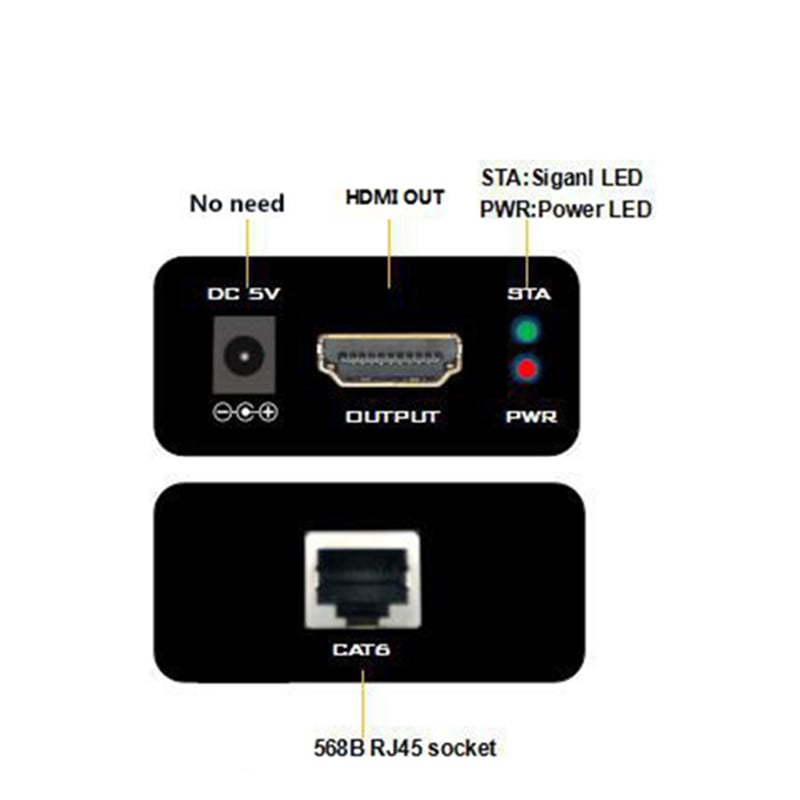

Support POC Power Supply

POC network cable power supply, only TX power supply is needed.

Support POC Power Supply
Powerful Compatibility Features

Support copy EDID, can match many kinds of display device

Powerful Compatibility Features
Drive Free, Plug and Play

Plug-and-play operation with no software required for easy, immediate installation

Drive Free, Plug and Play
Support OEM ODM

OEM: Free print company logo by laser print; MOQ≥1 unit

ODM: Pls send your requirements to us. (info@orivision.cn)

Support OEM ODM

Parameters Of 60m 1080P60 HDMI Network Extender

Name60m 1080P60 HDMI Network Extender
ModelZY-CH601S
StandardsHDMI 1.3; HDCP 1.2
Maximum pixel clock165MHz  Digital
Maximum data rate6.75Gbps
Resolution

3D:1080p@60Hz;

1080i@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz,

HDMI Impedance100Ω
HDMI ConnectorHDMI-A
HDMI cableLess than 5m at 1080p@60hz
RJ45 InterfaceRJ45
Transmission DistanceCAT6 --- 60m
Network CableLow resistance and consumption oxygen-free copper core (CAT6、CAT6A、CAT7)
Power supplyThe power adapter: DC 5V/1A
Power DissipationMAX 3W
TemperatureOperating: -5℃ ~ +70℃
HumidityOperating: 5% ~ 90%
Dimension79*43*23mm
The warranty1 year free warranty

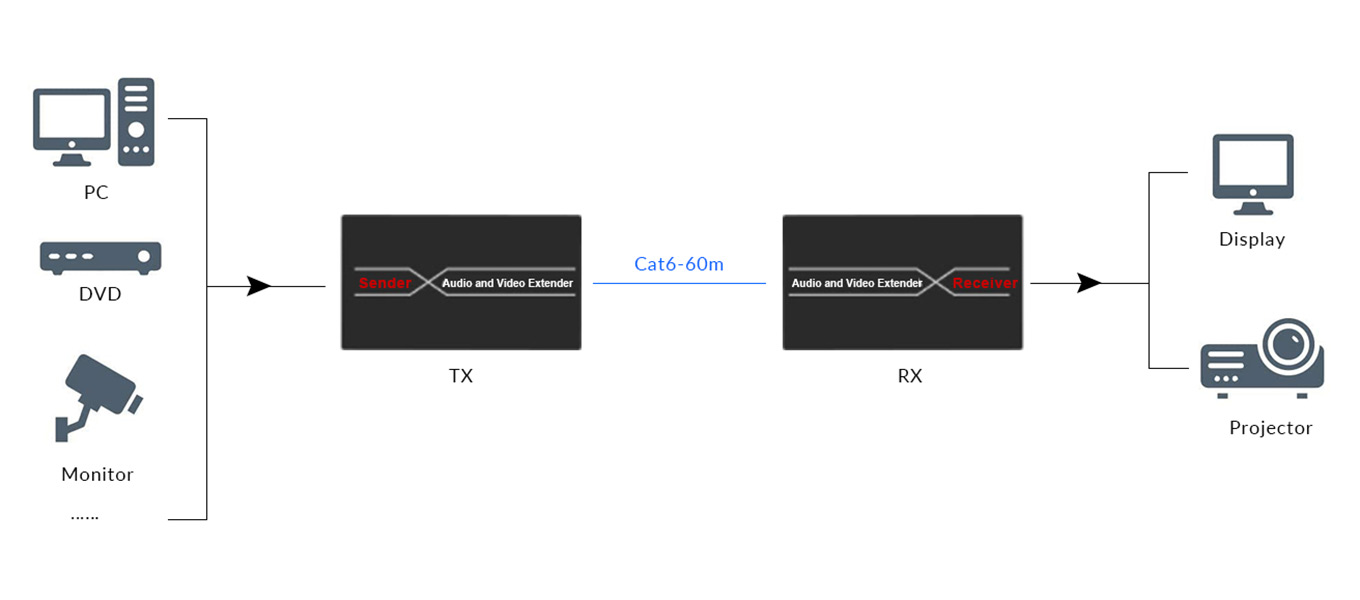

Diagram Of 60m 1080P60 HDMI Network Extender

It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.

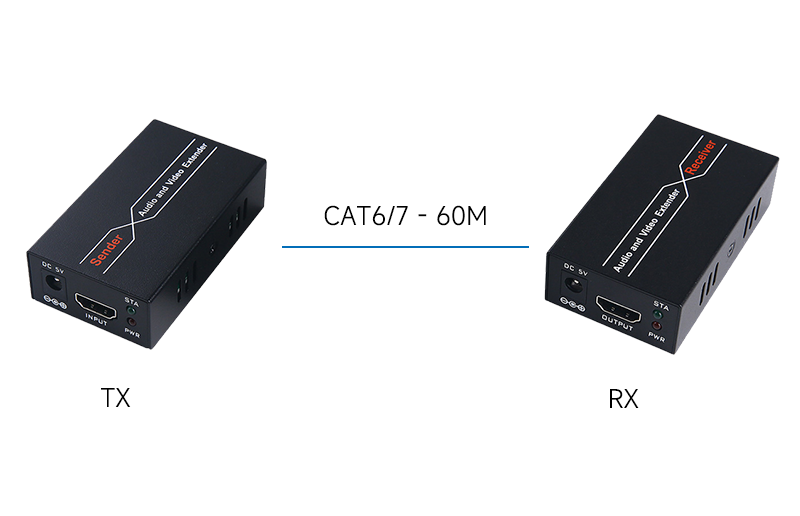

Point to Point Transmission
