【HDMI Extender up to 394ft/120m】With a single CAT6 cable, you can easily extend HDM signals up to 394ft. Support point to point connection or point to multi-point through gigabit network switches (up to 253 rx ).

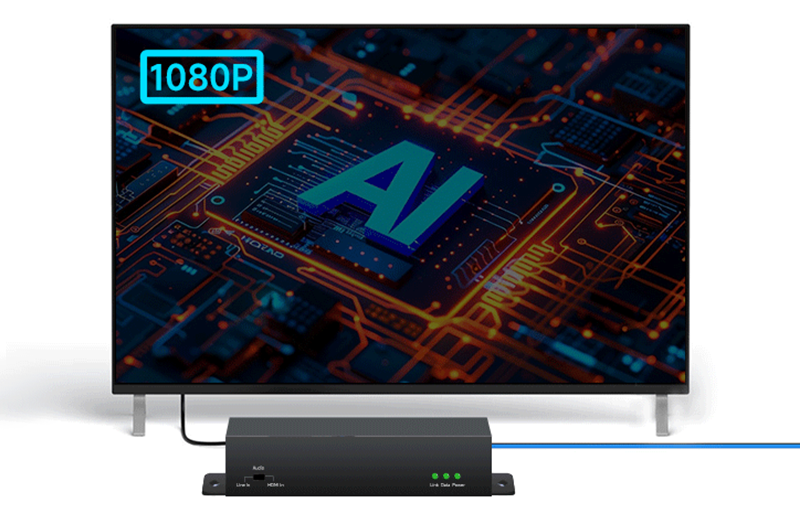

【Ultra HD Resolution】Supports resolutions up to 1920*1080@60Hz, provide you a smooth, stable and high quality video experience

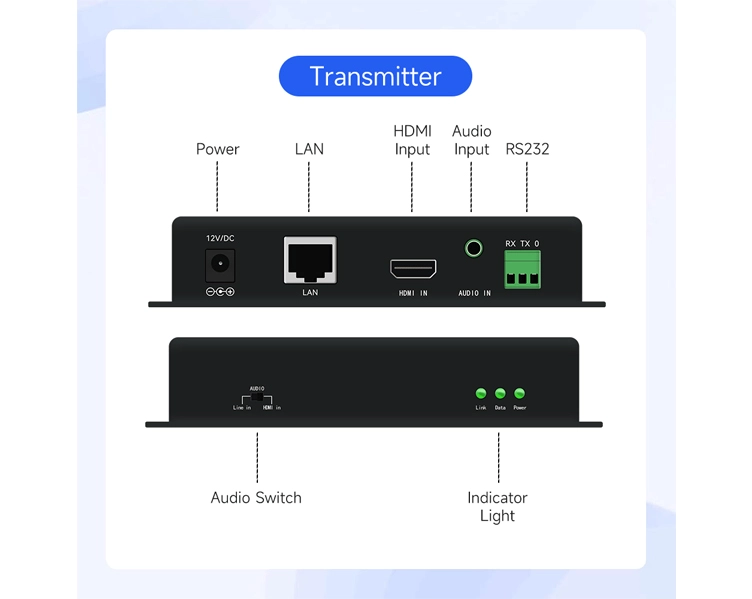

【Local output Display】The transmitter includes an HDMI loop output for connecting a local display.
【EDID Function】The EDID function also makes the product more compatible, it can match the display parameters between devices to be competent for complex tasks.
【Advanced Features】The HDMI Monitor Extender comes with an integrated automatic adjustment system and ESD protection system.

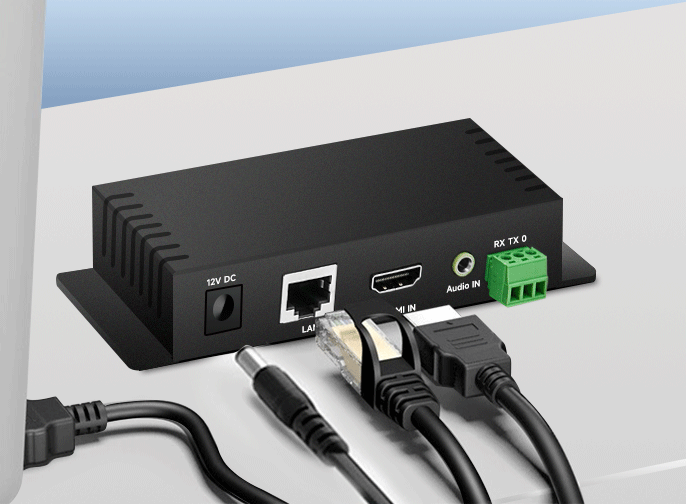

【Plug and Play】Simple to install, plug and play, no setup or configuration needed

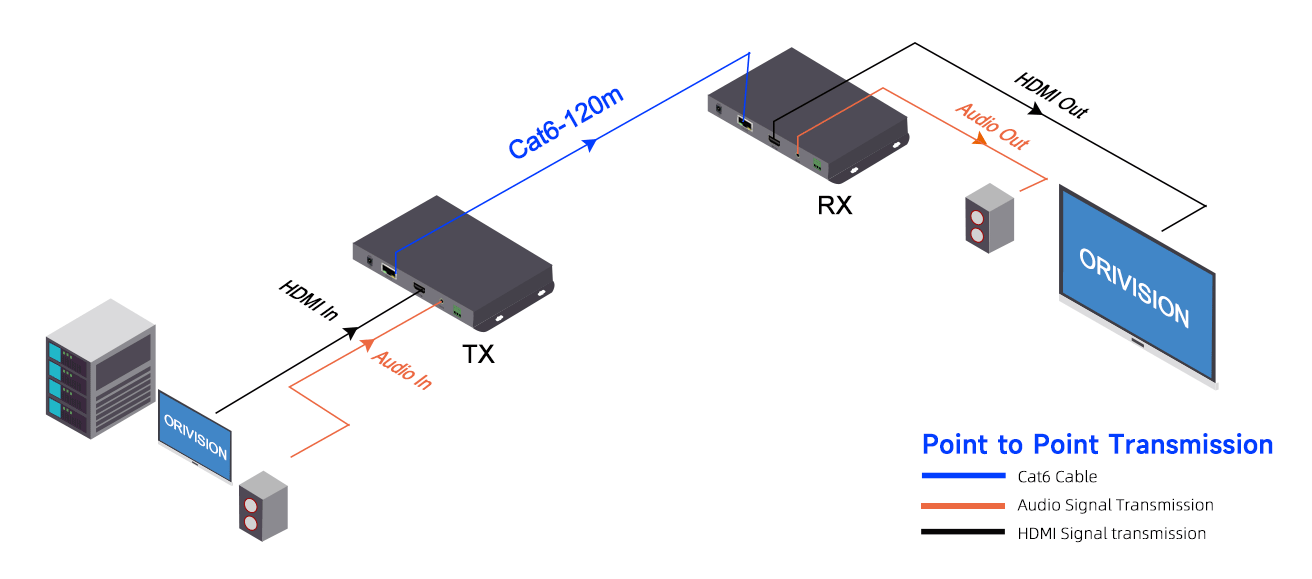

Point to point 150m over cat6
Support 1 to many receivers transmit（253pcs RX over Ethernet switch）
No software required, plug and play

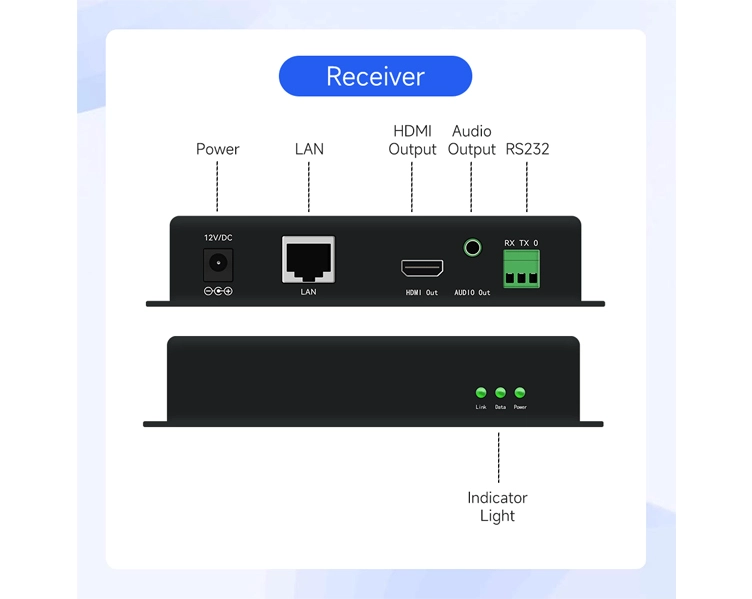

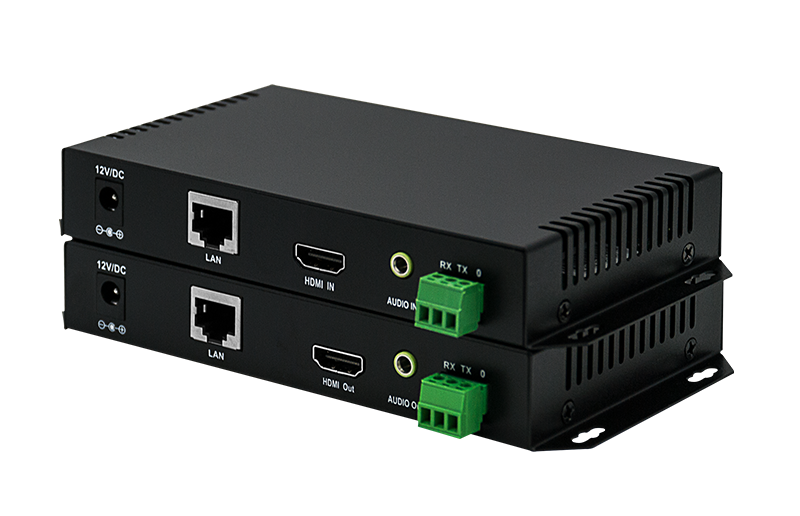

This HDMI Extender is a video extender solution, extending HDMI video, analog audio up to 120 meters (394 feet) over a single Cat6 cable. With RS-232 control port, and a Gigabit Ethernet port. For point-to-point transmission and point-to-many transmission with gigabit switches. Video resolution is 1920*1080@60HZ and does not degrade when extended to the full 120-meter distance.
Supports the max resolution of 1920*1080@60hz,clear and stable, providing you with an ultra-high-definition video vision, compatible with HDMI 1.3
The HDMI extender extends HDMI audio signals via a single CAT6 cable to 120 meters/394 feet with resolutions of up to 1080P@60 Hz.

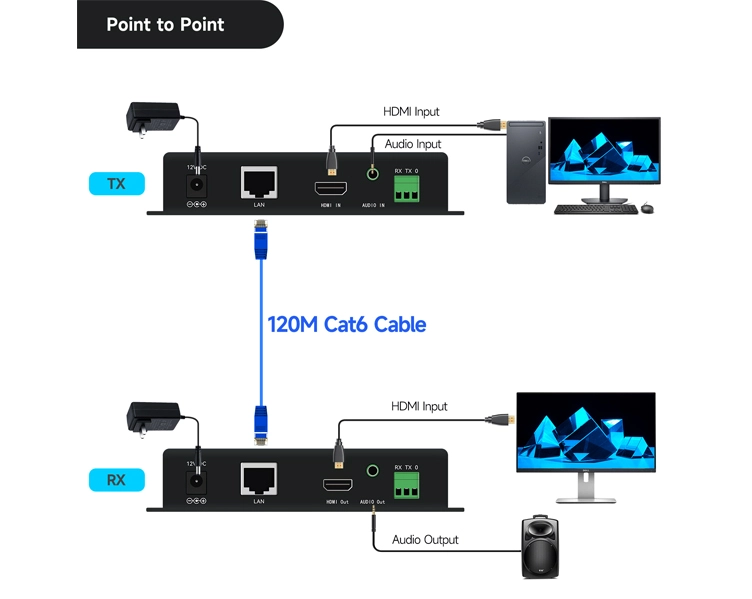

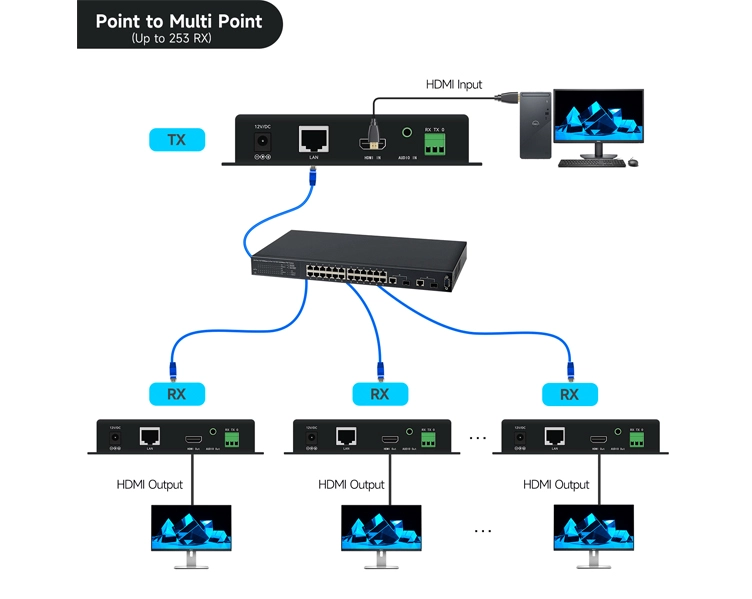

With a single CAT6 cable, you can easily extend HDM signals up to 394ft. Direct 1-to-1 connection or 1-to-many through Gigabit network switches, up to 253 RX per TX.
The HDMI Extender comes with an integrated automatic adjustment system and ESD protection system. It is compatible with various devices such as cameras, projectors, game consoles, DVD players, and more. It is widely used in education, presentations, outdoor events, theaters, conference rooms, and many other applications

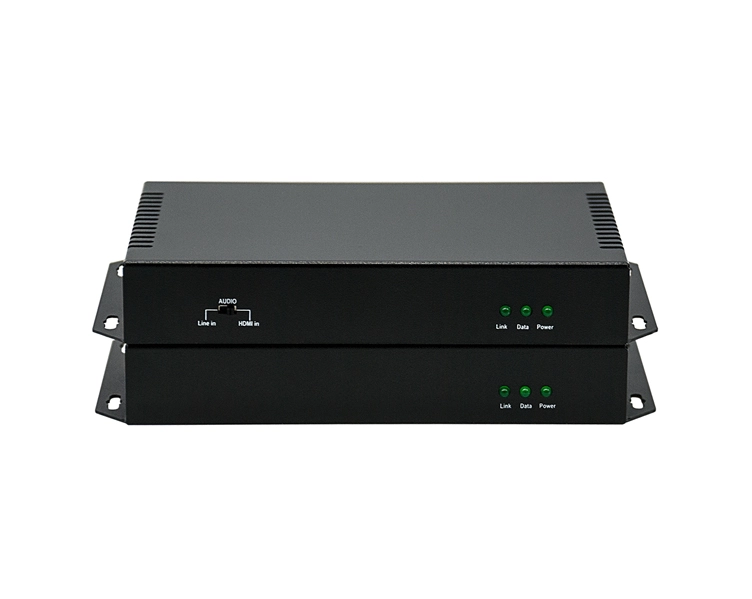

No driver required; Sturdy metal enclosure provides durability
| Name | 1080P@60 HDMI Extender over Cat5/6 |

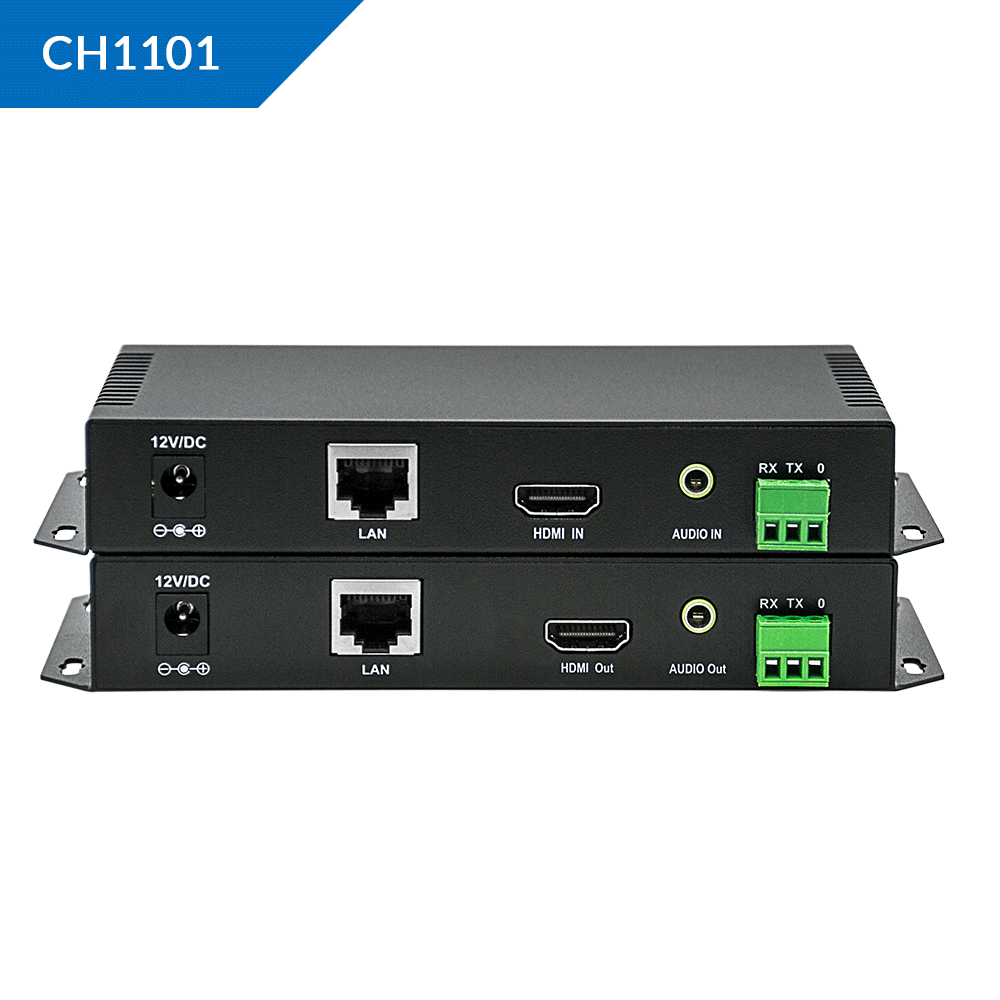

| Model | ZY-CH1101 |
| Interface Standard | HDMI 1.3；HDCP 1.2 |
| Pixel bandwidth | 165MHz |
| Data Rate | 6.75Gbps |
| Resolutions | 640X480@60HZ / 75HZ 800X600@60HZ / 75HZ 1024X768@60HZ / 75HZ 1280X720@60HZ / 75HZ 1280X768@60HZ / 75HZ 1280X1024@60HZ / 75HZ 1360X768@60HZ 1440x900@60HZ 1680x1050@60HZ 1920x1080@60HZ / 50HZ / 30HZ / 25HZ / 24HZ |
| Connector | HDMI-A |
| Impedance | 100Ω |
| Recommended length of HDMI cable | <5m when 1920X1080@60Hz |
| Interface | 3.5mm aduio |

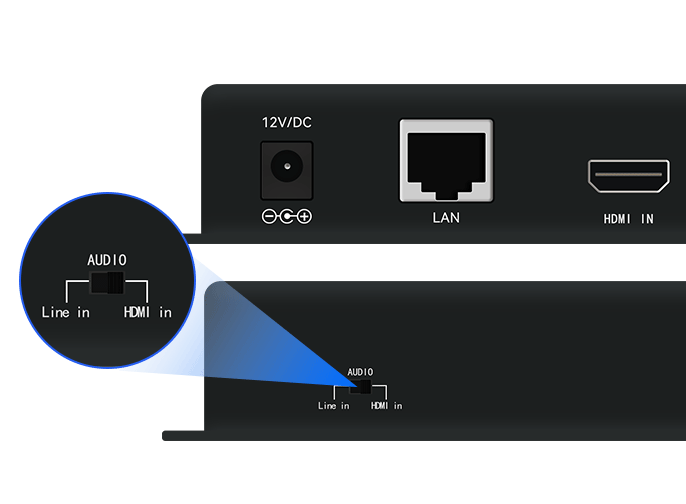

| Signal type | Digital Audio/Analog Audio |
| Signal direction | Forward transmission |
| RS232 | |
| Interface | DB9 |
| Baud rate | 115200 |
| Data bit | 8digits |
| Cable | |
| Interface | RJ45/568B |
| Transmission distance | Cat5e-100m, Cat6-120m |
| Cable | Cat5e and above |
| Other | |
| Temperature | -20 ~ +60℃ |
| Humidity | <90 % |
| Power Consumption | 5W/Unit |
| Power supply | DC 12V1A |
| Dimensions(L*W*H) | 16.2cm×8.9cm×2.5cm |
| Weight | 0.3KG/unit |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
