● HDMI 2.1 Video Supports Most Popular Resolutions Up to 4K@60Hz (YUV420/422/444)
● HDCP 2.2 and HDCP 2.3 Compliance Ensures Uninterrupted HD and UHD Video Playback

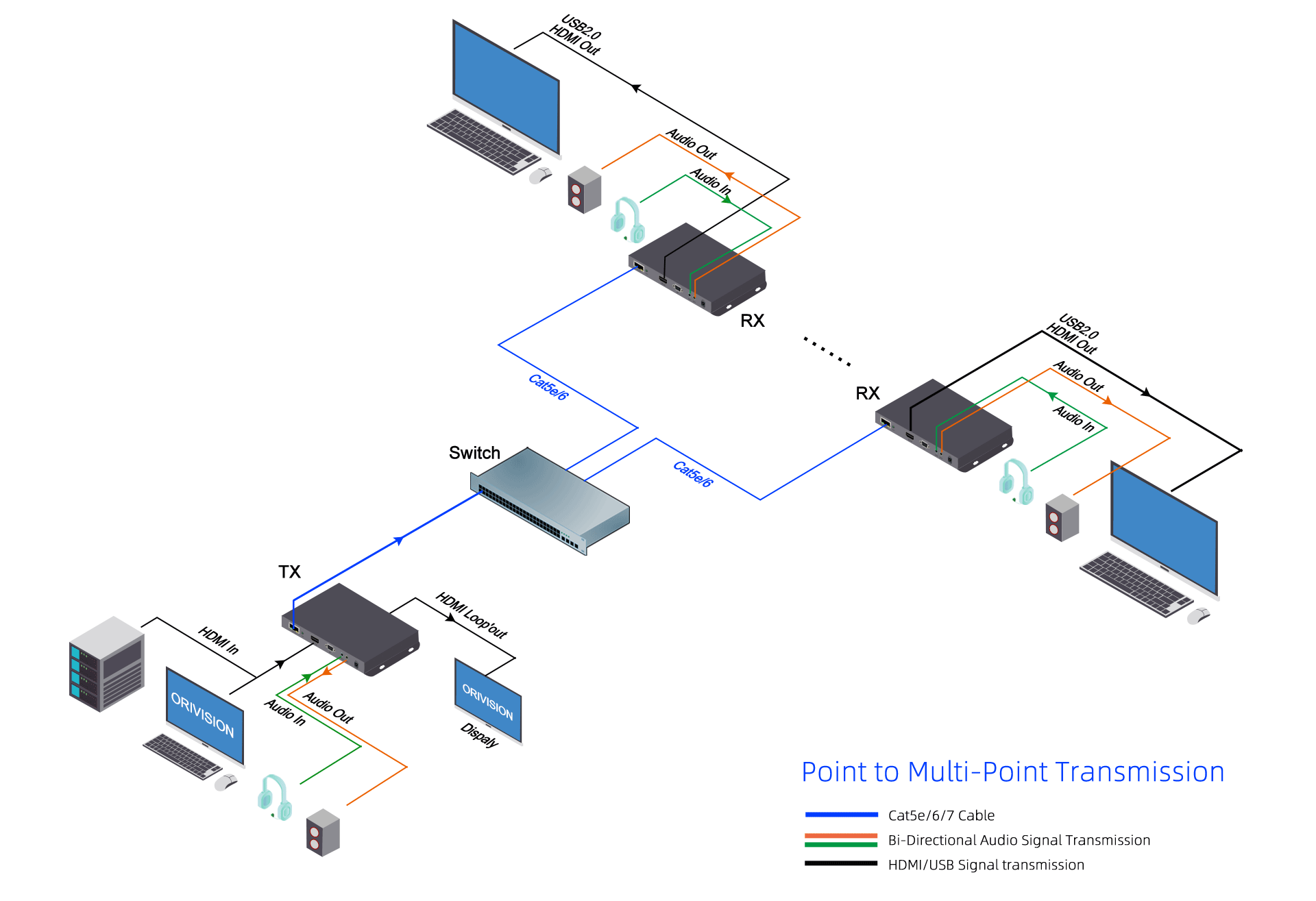

● Point to point 120m by Cat5e/6 cable, support point to many transmission with gigabit switches
● Support bi-direction audio transmission

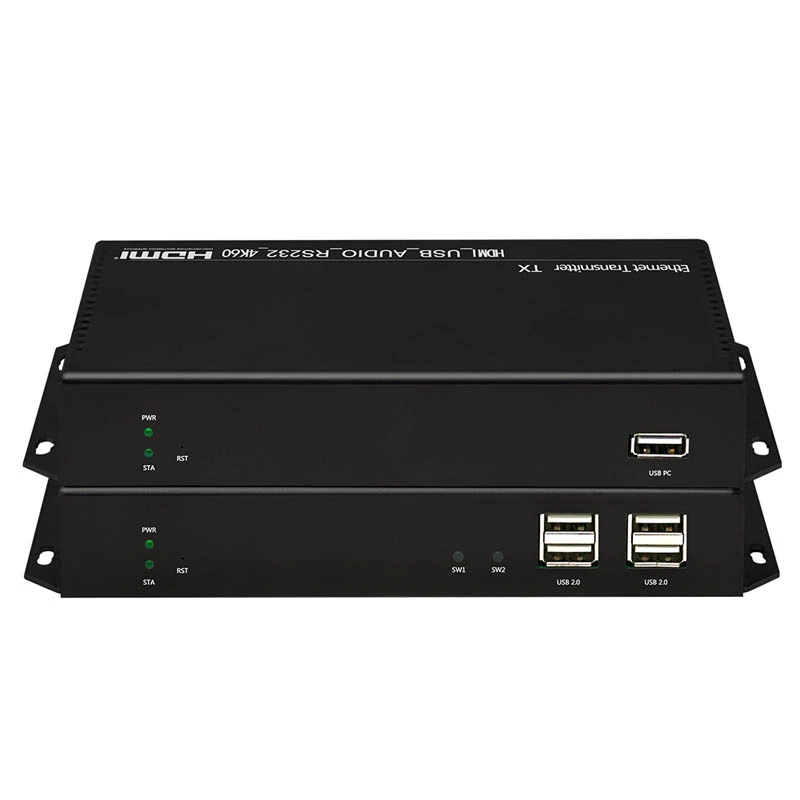

● Supports USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc.
● Built-in ESD protection circuit that can effectively prevent electrostatic damage

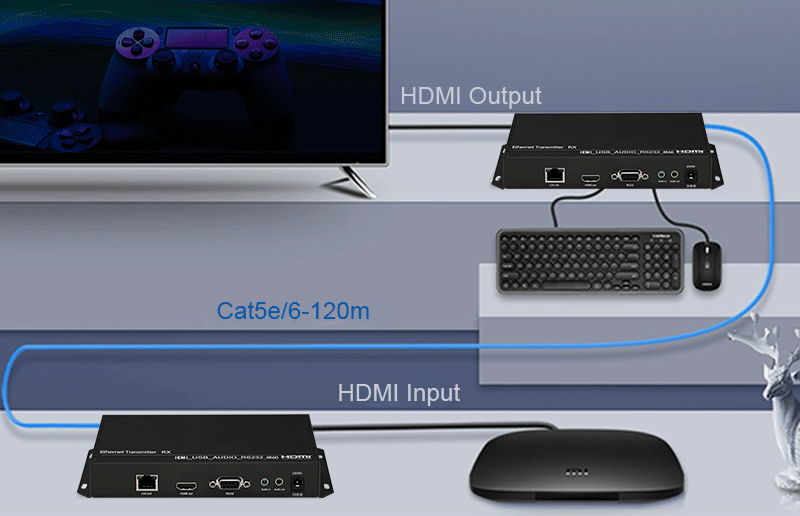

● Plug-and-play operation with no software required for easy, immediate installation
Supports resolutions up to 3840x2160@60Hz(YUV4:4:4)
Point to point 120m by Cat5e/6 cable
Supports HDMI2.1, HDCP2.2/2.3 and RS-232 control

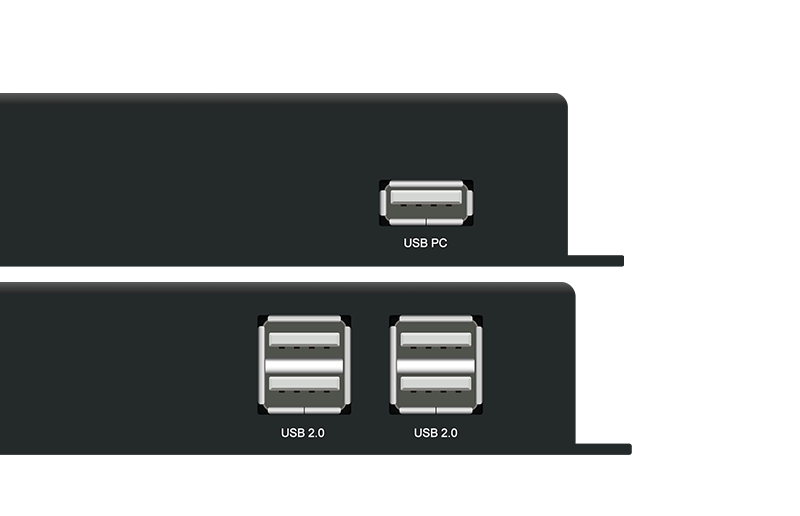

Supports all USB2.0 Signal Transmission
Plug-and-play operation

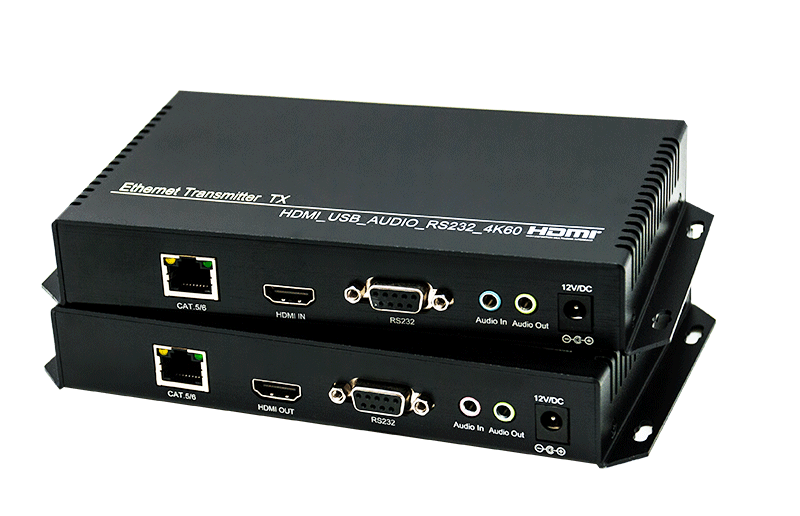

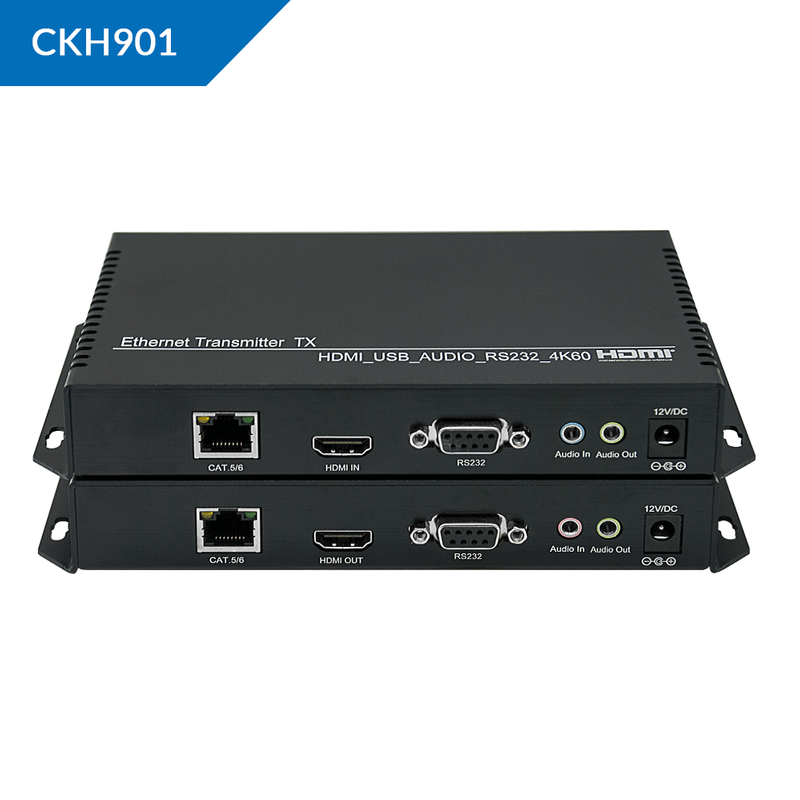

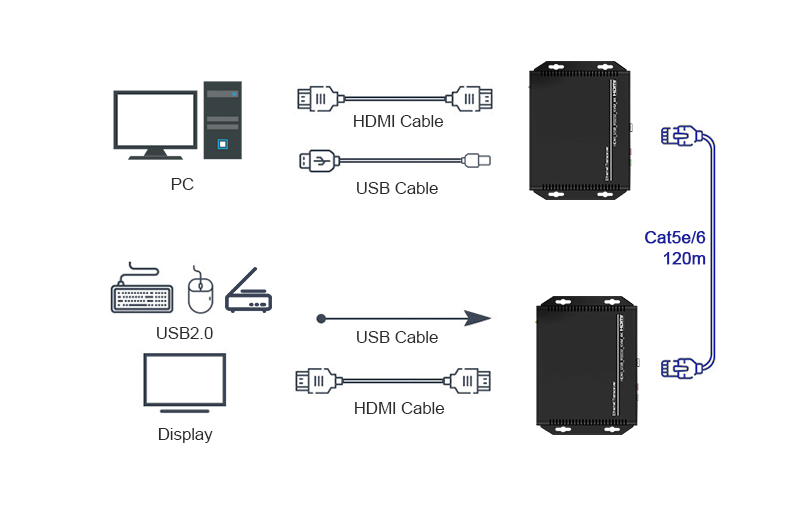

CKH901 is a KVM Extender is a video extender solution, extending HDMI video, analog audio, and USB 2.0 devices up to 120 meters (394 feet) over a single Cat 5e/6 cable. With RS-232 control port, and a Gigabit Ethernet port. For point to point transmission and point to many transmission with gigabit switches.

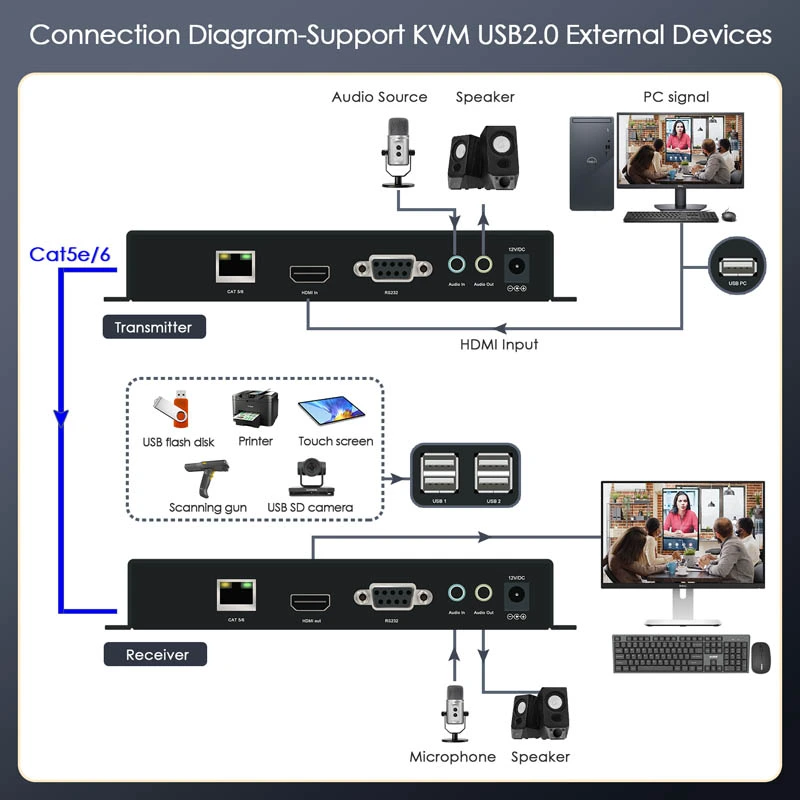

Applications include keyboards, mice, microphones, hard drives, touch screens, scanning guns, and other USB 2.0 devices. Video resolution is 3840*2160@60HZ and does not degrade when extended to the full 120 meter distance.
The CKH901 supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified in HDMI 2.1. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2/2.3 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization automatically fine-tunes the image quality at the remote display.
CKH901 is the ideal solution for connecting equipment in remote locations up to 120m apart with a single Cat5e/6 cable. It extend the HDMI signal using TCP/IP over a single Cat 5e/6 cable or a network switch. Applications include digital signage, houses of worship, classrooms, boardrooms, conference room projectors, gaming, video production and more.

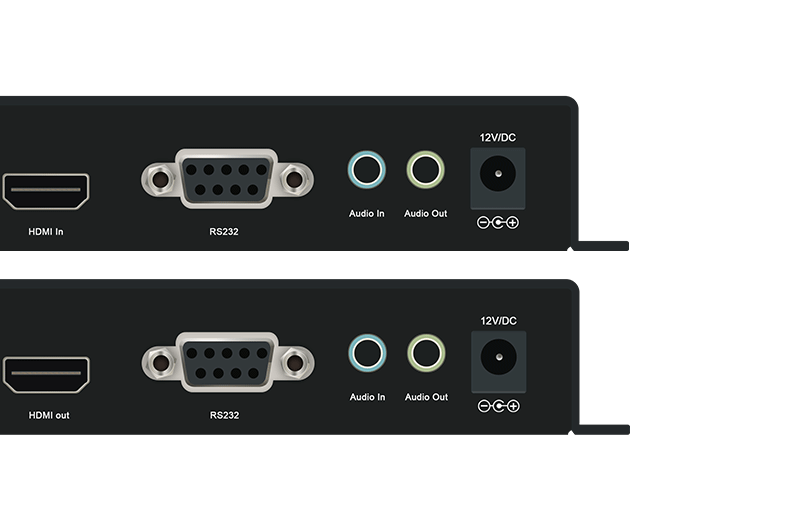

The transmitter supports audio embedding from and external audio source, while the receiver can extract audio from the HDMI signal for use with an external amplifier or powered speakers.
The receiver supports audio embedding from and external audio source, while the transmitter can extract audio from the HDMI signal for use with an external amplifier or powered speakers.
HDMI version: HDMI2.1 compatible; LC connection; HDCP 2.2 and HDCP 1.4 Compliance Ensures Uninterrupted HD and UHD Video Playback; Support bi-directional RS232 transport.
Supports USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc.

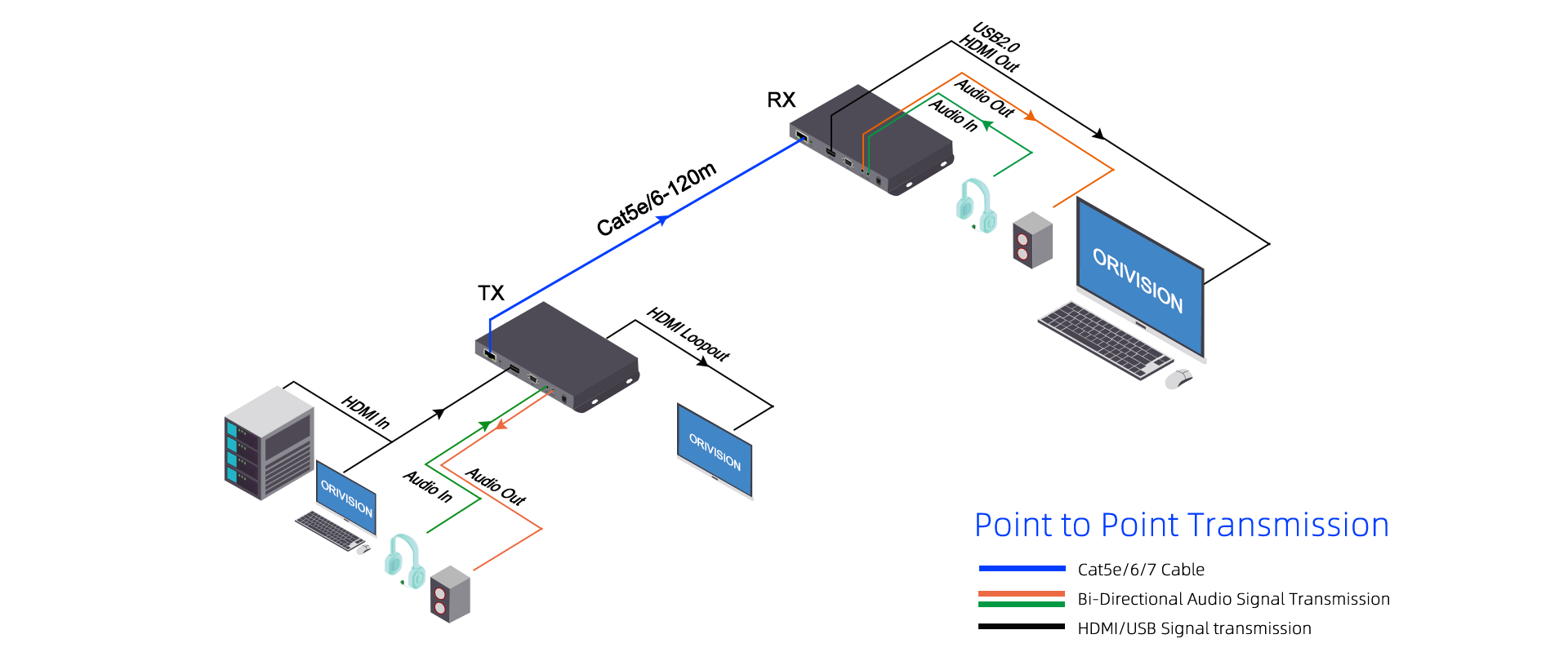

Point to Point connection between transmitter and receiver; No IP configuration/drivers/network equipment required.
| Name | 4K@30HZ HDMI/USB2.0 KVM Extender over Cat 5e/6 |
| Model | ZY-CKH901 |
| Interface Standard | HDMI2.1, HDCP2.2/2.3 |
| Resolutions | 800x600P60，1024x768P60，1280x800P60，1280x1024P60， 1360x768P60，1366x768P60，1400x1050P60，1440x900P60， 1600x900P60，1600x1200P60，1680x1050P60，1280x720P50， 1280x720P60，1920x1080P24，1920x1080P25，1920x1080P30， 1920x1080P50，1920x1080P60，1920x1080I60，1920x1080I50， 1920x1200P60，3840×2160P30，3840×2160P60 |
| Interface | DB9 |
| Transmission | Bi-direction |
| Baud rate | 115200bps |
| Data bit | 8digits |
| Interface | 3.5mm aduio input |
| format | 44.1K,48K,96K,176K,192K |
| Transmitter Interface | Type A USB interface |
| Receiver Interface | Type B USB interface |
| Interface | RJ45/568B |
| Bandwidth | Kilomega |
| Distance | 120m (point to point) |
| Temperature | ‘-5~60℃ |
| Humidity | <90 % |
| Power Consumption | 2W/Unit |
| Power supply | DC 12V1A |
| Dimensions | 187*105*28mm (Length * width * height) |
| Weight | 0.3KG |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
