● Support HDMI and DVI input;
● Support 4 HDMI output;
● Output support RGB 4:4:4;
● Support RS232 control;
● Support 2X2/1X2/2X1 splicing, easy operation, plug and play;
Support HDMI and DVI input;
Support 4 HDMI output;
Output support RGB 4:4:4;
Support RS232 control;
Support 2X2/1X2/2X1 splicing, easy operation, plug and play;

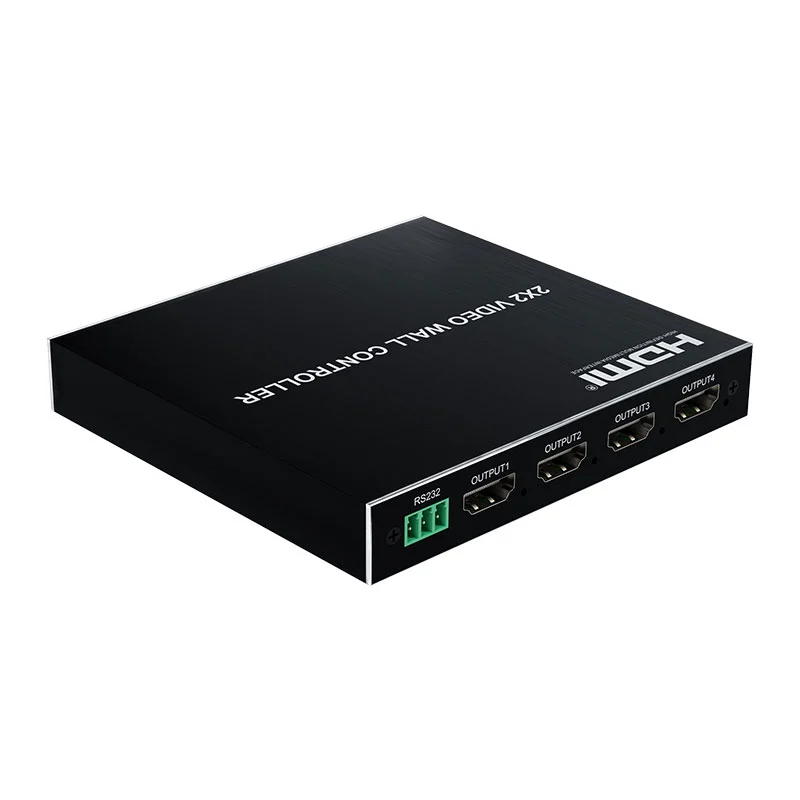

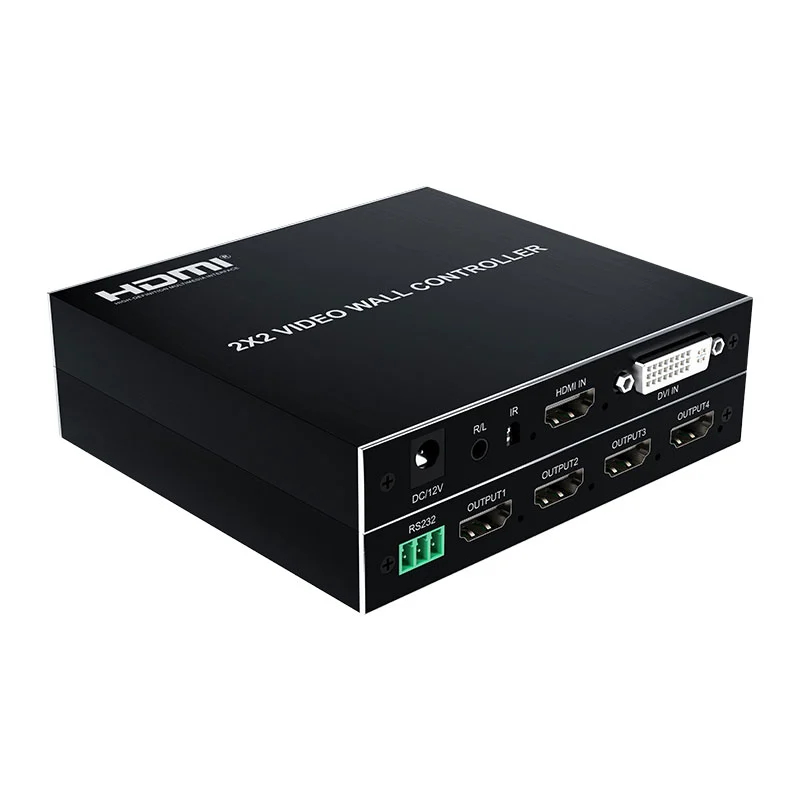

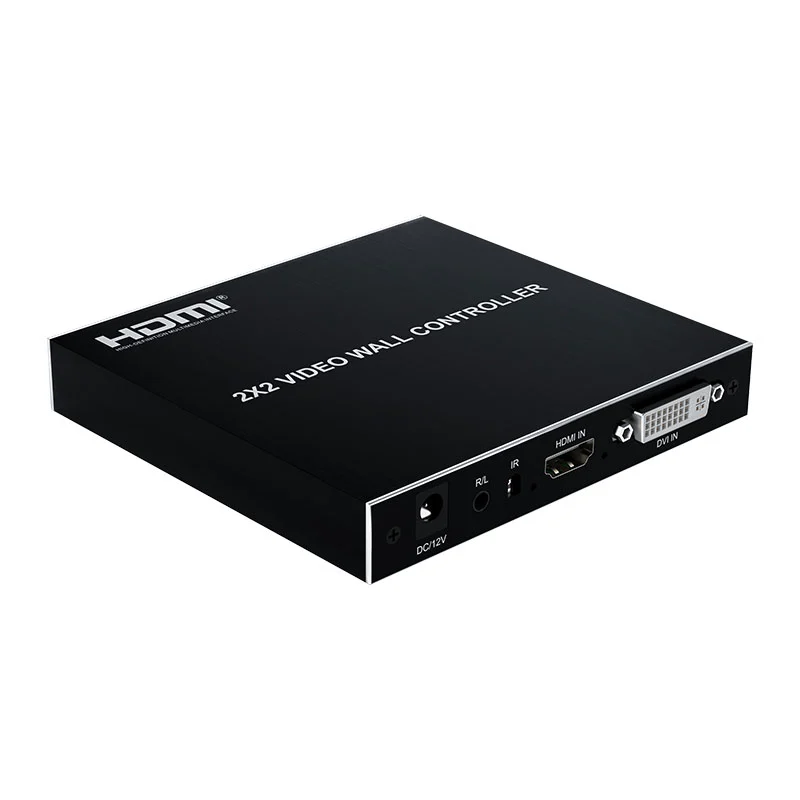

This 1080P 2X2 video wall controller,support HDMI or DVI input and 4 HDMI output,the main function is to divide a complete HDMI,DVI HD image signal into 4 blocks and assign to 4 video display units (such as rear projection unit, LCD TV, etc.). Complete with 4 HDMI HD video display units to form a large dynamic image wall.
The aluminum shell design protects the interior and provides excellent heat dissipation, further enhancing durability for reliable performance and long life.
Delivers HD picture quality at resolutions up to 1080P.

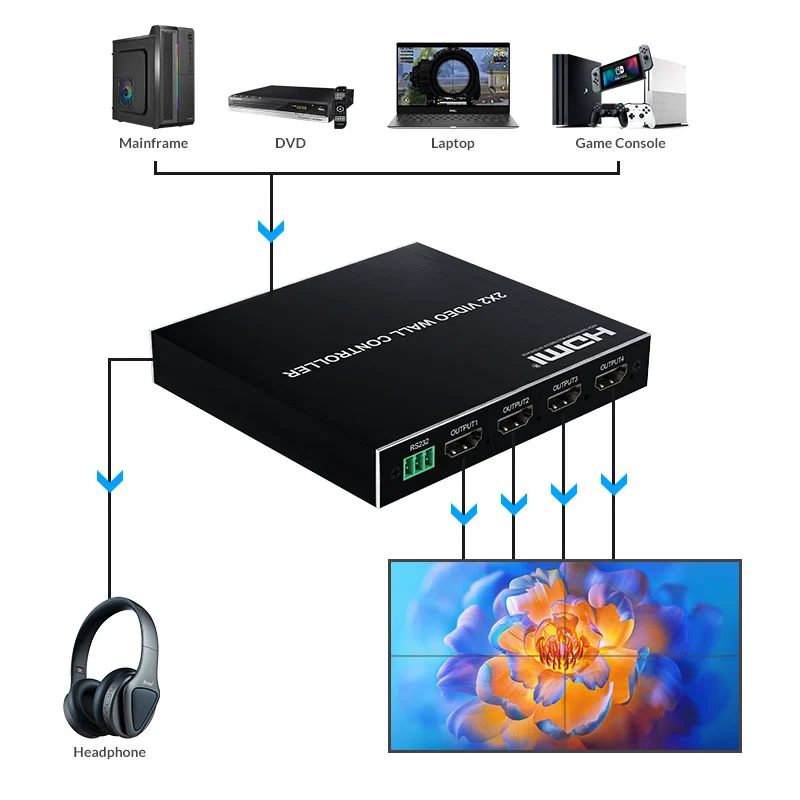

Compatible with Computer, laptop, set-top box, DVD player can all be the perfect signal sources.
This 2x2 HDMI video image processor can connect up to 4 LCD TVs or other displays, which can support multiple display modes,
such as 2x2, 1x1, 1x2, 1x3, 1x4, 4x1, 3x1, 2x1.
With the rotation function, you can flip the image of HDMI output 1 & output 2 to 180 degree,
which can adjust the screens in an orientation with the thinnest edges, reduce the thick middle border.
With quick heat absorption and dissipation, more durable.
Gold-plated interface can reduce data transmission loss and improve signal transmission speed.
Plug-and-play operation with no software required for easy, immediate installation
OEM: Free print company logo by laser print; MOQ≥1 unit
ODM: Pls send your requirements to us. (info@orivision.cn)
| Name | 2x2 VIDEO WALL CONTROLLER |
| Input | HDMI *1 DVI *1 |
| Output | HDMI *4 |
| Audio Format | Stereo |
| Input cable length | ≤5m AWG26 HDMI standard cable |
| Output cable length … | ≤5m AWG27 HDMI standard cable |
| Resolutuion | the highest support 1920x1080/60Hz |
| Max working current | 300mA |
| RS232 | √ |
| IR | √ |
| Temperature | -10℃～ +45℃ |
| Dimension (L x W x H) | 121x119x19(mm) |
| Weight | 228g |
It is ideal for a wide range of applications requiring long distance transmission of high resolution content with the highest quality.
